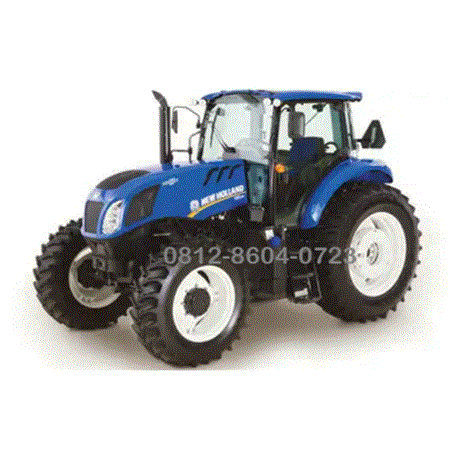

New Holland Tractor TS6140 | 139 hp

Description

New Holland Tractor TS6140 | 139 hp

BELIALAT.COM support penjualan unit, parts, service, rental, maintenance contract, overhaul, reconditioned New Holland Tractor TS6140 | 139 hp

The New Holland TS6.140 is a versatile utility tractor known for its rugged design and straightforward mechanical operation. Depending on your region, it may feature either a 4-cylinder or a 6-cylinder engine (typically Tier 4B in North America and Tier 3 in other markets like APAC/Africa).
Below are the primary technical specifications for the current Tier 4B (Series II) model:

Engine & Performance

The TS6.140 is designed for high-torque applications like haying, loader work, and tillage.
Engine Type: FPT (Fiat Powertrain) NEF 4.5L, 4-Cylinder (Tier 4B Final).
Rated Horsepower: 139 hp (at 2200 RPM).
PTO Horsepower: 118 hp.
Maximum Torque: Approx. 419 lb-ft (567 Nm) at 1500 RPM.
Aspiration: Turbocharged and Intercooled.
Fuel Capacity: 57.5 gal (217 L) / DEF Capacity: 7.9 gal (30 L).

Transmission Options

New Holland offers three main configurations to suit different speeds and tasks:
Base: 8×8 Synchronized Hydraulic Shuttle (Left-hand shuttle).
Optional: 16×8 Dual Power Synchronized Hydraulic Shuttle (Hi-Lo).
Creeper: Optional 10:1 gear ratio for ultra-low speeds (down to 0.16 mph).
Top Speed: 19 mph (30 kph) or 25 mph (40 kph) depending on the 4WD package.

Hydraulics & 3-Point Hitch

Implement Pump Flow: 13 gpm (49 L/min).
Combined Flow: Up to 22–29 gpm (depending on auxiliary pump options).
3-Point Hitch Category: Category II with flexible link ends.
Standard Lift Capacity: 3,735 lbs (1,694 kg).
Max Lift Capacity: Up to 7,326 lbs (3,323 kg) with two optional auxiliary lift cylinders.

Dimensions & Weight

Wheelbase: 103.9 in (2,640 mm).
Shipping Weight (4WD Cab): Approx. 11,200 lbs (5,080 kg).
Max GVW (Tractor Weight): Up to 18,298 lbs (8,300 kg).
Front Axle: Class 3 Heavy Duty (on 4WD models).

Key Features

VisionView™ Cab: Large glass area and high-visibility roof panel for loader operations.
Flat-Deck Platform: Easy access and plenty of legroom for Open Station (ROPS) models.
Serviceability: Ground-level fuel filling and easy access to engine filters/oil dipstick.
