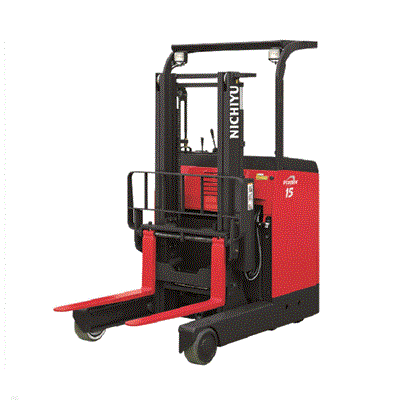

Nichiyu Forklift FBRA15 | 1.5 ton
Nichiyu Forklift FBRA15 | 1.5 ton
Standard Specifications
Model : FBRA15
Rated capacity with Integral sideshifter Q kg : 1500.
Load center mm : 500.
Motor typе : AC.
Operator type : Stand on
Lift height H2 mm : 4000.
Free lift H2 mm : 405
Tilt angle <Fork> deg Downward/Upward deg. : 3/5.
Fork finger bar : Hook type
Fork Dimensions (L/W/T) I/b/s mm : 850/100/35.
Fork Setting (Max/Min) mm : 225-735
Overall length L1 mm : 2010.
Length Frame L mm 1885
Length Fork face mm L2 : 1160.
Description
Nichiyu Forklift FBRA15 | 1.5 ton
BELIALAT.COM support penjualan unit, parts, service, rental, maintenance contract, overhaul, reconditioned Nichiyu Forklift FBRA15 | 1.5 ton
Standard Specifications
Model : FBRA15
Rated capacity with Integral sideshifter Q kg : 1500.
Load center mm : 500.
Motor typе : AC.
Operator type : Stand on
Lift height H2 mm : 4000.
Free lift H2 mm : 405
Tilt angle <Fork> deg Downward/Upward deg. : 3/5.
Fork finger bar : Hook type
Fork Dimensions (L/W/T) I/b/s mm : 850/100/35.
Fork Setting (Max/Min) mm : 225-735
Overall length L1 mm : 2010.
Length Frame L mm 1885
Length Fork face mm L2 : 1160.
Dimension
Reach stroke E mm : 770
Overall. width B mm : 1090.
Between legs B4 mm : 750
Frame B mm : 1090.
Height leg H. mm : 275
Mast lowered height H1 mm : 2495
Mast extended height H4 mm : 4900
Overhead guard height H5 mm : 2220.
Front overhang reach out X mm : 190
Floor height mm : 265
Min. turning radius* Wa mm : 1810.
Right angle turning aisle width 1100 X 1100 Pallet ( incl. 200 mm clearance ) mm : 1960
Right angle turning aisle width 1100 X 1100 Pallet ( incl. 200 mm clearance ) ast mm : 2795.
Performance
Travel speed Laden/Unladen km/h : 9.5/10.5
Lifting speed Laden / Unladen mm : 310/540.
Max. gradeability 3 min. rating 1.5 km/h over : 10/14.3
Service weight with standard Battery kg : 3810.
Number of wheels load/drive/caster : 2/1/2
Load mm : Ø254×114 (Urethane).
Drive mm : Ø330×145 (Rubber).
Caster mm : Ø178×73 (Rubber).
Chassis
Wheelbase Y mm : 1515
Tread front mm : 975
Rear mm : 640
Road clearance center of wheelbase mm : 80
Service brake Mech./Hvdr./Electr./Pneum : Mech.
Battery voltage / capacity (5hr.rating) V/Ah : 48/290
Mass (with / case) min/max.kg : 460 (450/750).
Drive motor 60 min. rating kw : 4.3
control : AC.
Hydraulic motor 5 min. rating kw : 8.8
control : AC.
Steering motor 60 min. rating kw : 0.3
control : DC.
Charger (optional) Type (Built-in/Stationary) : Stationary
Charging method : Authomatic
Charging input P/V : 3/(400/200)
Charging Capacity kVa : 4.7
