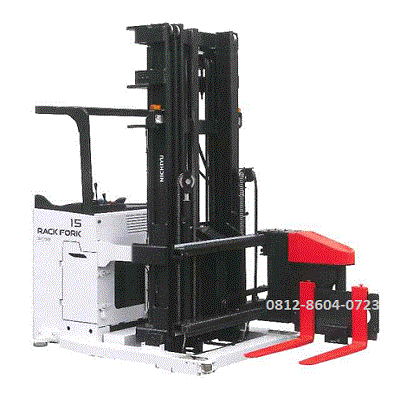

Nichiyu Forklift RFTL15 | 1.5 ton
Nichiyu Forklift RFTL15 | 1.5 ton
Performance
Capacity kg : 1500 |Load dimensions (L x W) mm : 1100 x 1200 | Load center mm : 550 | Lift height maximum : 6500 mm | Lifting speed laden : 250 mm/s , Unladen : 290 mm/s | Traveling speed laden : 8 km/h, unladen : 8.5 km/h | Rotating speed of forks : 13 s/180° | Shift speed : 220 mm/s | Main aisle width (calculated) : 330 mm | Stacking aisle width B : 1580 mm.
Dimensions
Overall length C : 2928 mm | Overall width (with across guide rollers) D : 1550 mm | Overhead guard height E : 2280 mm | Fork length : 850 mm | Fork width F : 122 mm | Wheelbase G : 1650 mm | Front overhang H : 790 mm | Shift stroke I : 1200 mm | Lowered fork height J : 60 (to bottom of fork) | Minimum turning radius K : 1910 mm |
Tire
Drive wheel : 380 X 165 mm/ Rubber | Load wheel : 140 X 127 mm/ Urethane | Casters wheel : 204 X 76 mm/ Rubber
Control Motors
Travel : 5 kw | Control method : Invrter | Hydraulic : 11 kw / Inverter | Steering : 0.3 kw/ Fet chopper | Shift & Rotate drive method : Electric / Fet chopper
Battery
Battery capacity : 48 V /320 Ah / 5HR | Charger type : Built-in 5.2 kVA/ Stationary 6.5 kVa
Description
Nichiyu Forklift RFTL15 | 1.5 ton
BELIALAT.COM support penjualan unit, parts, service, rental, maintenance contract, overhaul, reconditioned Nichiyu Forklift RFTL15 | 1.5 ton
Offers Three-directional
The Rack Fork Series
handles loads from three.
directions by means of shiftand-rotate operation or with
conventional forward loading.
and unloading. No turning of
the truck is required.
Accommodates Aisles Only 1480 mm Wide
Compared to reach trucks, the Rack
Fork Series accommodates significantly.
narrower aisles only 1480 mm wide.
Offers a maximum lift
height of 7.5 meters.
Increased stability
Special H steel and center guide rail are
used for the mast. It results in great stability while operation
Performance
Capacity kg : 1500 |Load dimensions (L x W) mm : 1100 x 1200 | Load center mm : 550 | Lift height maximum : 6500 mm | Lifting speed laden : 250 mm/s , Unladen : 290 mm/s | Traveling speed laden : 8 km/h, unladen : 8.5 km/h | Rotating speed of forks : 13 s/180° | Shift speed : 220 mm/s | Main aisle width (calculated) : 330 mm | Stacking aisle width B : 1580 mm.
Dimensions
Overall length C : 2928 mm | Overall width (with across guide rollers) D : 1550 mm | Overhead guard height E : 2280 mm | Fork length : 850 mm | Fork width F : 122 mm | Wheelbase G : 1650 mm | Front overhang H : 790 mm | Shift stroke I : 1200 mm | Lowered fork height J : 60 (to bottom of fork) | Minimum turning radius K : 1910 mm |
Tire
Drive wheel : 380 X 165 mm/ Rubber | Load wheel : 140 X 127 mm/ Urethane | Casters wheel : 204 X 76 mm/ Rubber
Control Motors
Travel : 5 kw | Control method : Invrter | Hydraulic : 11 kw / Inverter | Steering : 0.3 kw/ Fet chopper | Shift & Rotate drive method : Electric / Fet chopper
Battery
Battery capacity : 48 V /320 Ah / 5HR | Charger type : Built-in 5.2 kVA/ Stationary 6.5 kVa
