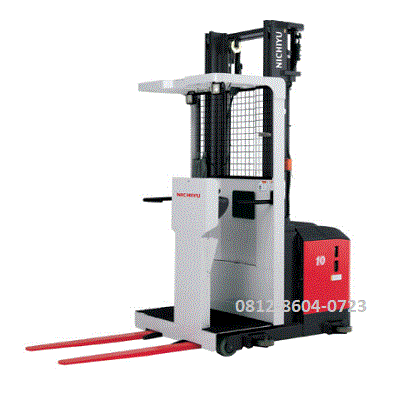

Nichiyu Order Picker RB10F | 1 ton

Description

Nichiyu Order Picker RB10F | 1 ton
BELIALAT.COM support penjualan unit, parts, service, rental, maintenance contract, overhaul, reconditioned Nichiyu Order Picker RB10F | 1 ton

Assured Safety and Enhanced Protection

Extensive Interlock Functions
Safety guard is not in place.

Top cover is closed. Top
Truck is being charged. Truck is being charged.

Forks are sitting on rack (or chain is slack).
Except RB Series.

Travel and lift lock activated.
Charging lock activated. Charging activated.

Travel and lift lock activated.
Travel and lift lowering lock activated.

Smooth Assured Braking System

Electromagnetic braking followed by regenerative braking ensures
smooth, sure braking

Increased stability

Special H steel and center guide rail are
used for the mast. It results in great stability while operation

Performance

Capacity  : 1000 kg |  Load center : 600 mm | Lift height maximum : 3000 mm | Lifting speed laden : 220 mm/s , Unladen : 330 mm/s | Traveling speed laden : 8 km/h, unladen : 9 km/h | Minimum turning radius : 1420 mm

Dimensions

Overall length C : 2455 mm | Overall width  : 1104 mm | Overall height mast lowered D : 2140 mm, mast raised E : 5080 mm | Fork length F : 850 mm | Wheelbase G : 1210 mm | Front overhang H : 13 mm | Road clereance : 60 mm | Service weight with battery : D-type : 1740 kg, F-Type  : 1780 kg

Tires

Drive wheel : 330 X 145 mm/ Urethane ( 1 )| Load wheel : 152 X 90 mm/ Urethane (2)

Control Motors

Drive : 2.6 kw | Control method : Invrter | Hydraulic : 8.8 kw / Inverter | Steering : 0.3 kw/ Fet chopper

Battery

Voltage : 48 V  | Standard : 201 Ah/5HR | Mass ( with case : 340 kg | Optional : 240 Ah/5HR | Mass ( with case) : 390 kg
