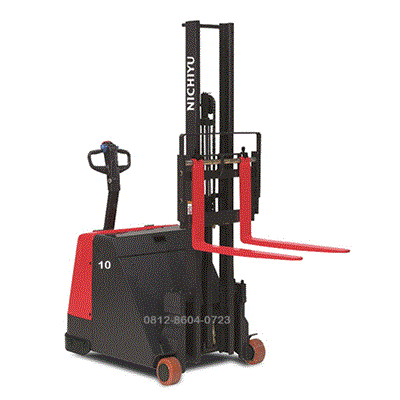

Nichiyu Pallet Stacker FBD10 | 1 ton

Description

Nichiyu Pallet Stacker FBD10 | 1 ton
BELIALAT.COM support penjualan unit, parts, service, rental, maintenance contract, overhaul, reconditioned Nichiyu Pallet Stacker FBD10 | 1 ton

Counterbalanced type

Simple enough to operate
It features a functional arrangement of a one-touch butterfly-type speed control knob as well as a  warning horn, lift  lever, and other functions. It is well designed for easy operation by all.

Equipped with a tilting mast as standard equipment.(optional on FBD7 & FBD9 models).
Lifting loads to higher levels with the forks can be hazardous if the forks are held horizontally.

With the FBD Series, the mast can be tilted backward for greater security and prevention  of toppled loads

This highly maneuverable straddle leg model boasts a tight turning radius

Outstanding turning performance

This  easy, compact, and convenient lift truck handles exceptionally tight turns. The minimum turning radius is only 1,430 mm,*  ensuring good maneuverability even in confined spaces

Lorry with  entire roll box pallets

your lorry lacks a lifter, products that have been  picked inside the factory or delivery center must be reloaded to the lorry, which is highly inefficient. The FBD Series, however, is capable of loading an entire roll box pallet onto a truck

This lightweight  model can be operated on upper floors with  confidence

This compact and lightweight lift truck is the ideal choice for use on upper floors. What’s more, it won’t overload your freight
elevator.

Choose the mast height that meets your lifting  needs

Both single mast and two stage mast models are available. Choose from the  seven models of FBD  Series and three models of SBW  Series with two stage masts

Performance

Capacity kg : 1000
Load dimensions (L x W) mm : 1100 x 1200.

Load center mm : 550
Lift height maximum : 1055 mm.

Lifting speed laden : 330 mm/s , Unladen : 390 mm/s
Traveling speed laden : 9.5 km/h, unladen : 10 km/h.

Rotating speed of forks : 12 s/180°
Shift speed : 240 mm/s.

Main aisle width (calculated) : 3180 mm
Stacking aisle width B : 1480 mm.

Dimensions

Overall length C : 2778 mm.
width (with across guide rollers) D : 1450 mm.

Overhead guard height E : 2280 mm
Fork length : 850 mm | Fork width F : 100 mm.

Wheelbase G : 1500 mm
Front overhang H : 770 mm.

Shift stroke I : 1175 mm
Lowered fork height J : 60 (to bottom of fork)
Minimum turning radius K : 1760 mm

Tire

Drive wheel : 380 X 165 mm/ Rubber | Load wheel : 127 X 92 mm/ Urethane | Casters wheel : 204 X 76 mm/ Urethane

Control Motors

Travel : 5 kw | Control method : Invrter | Hydraulic : 11 kw / Inverter | Steering : 0.3 kw/ Fet chopper | Shift & Rotate drive method : Electric / Fet chopper

Battery

Battery capacity : 48 V /320 Ah / 5HR | Charger type : Built-in 4.3 kVA/ Stationary 4.7 kva
