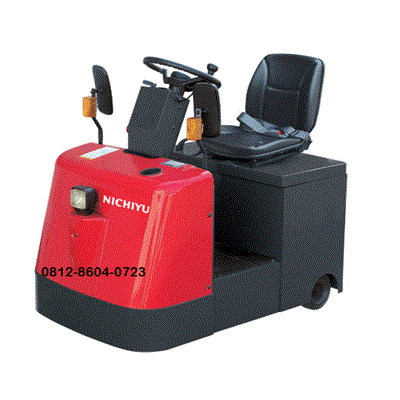

Nichiyu Towing Tractor NTT75 | 3 ton

Description

Nichiyu Towing Tractor NTT75 | 3 ton
BELIALAT.COM support penjualan unit, parts, service, rental, maintenance contract, overhaul, reconditioned Nichiyu Towing Tractor NTT75 | 3 ton

The Power to Tow Heavy Loads with Ease

Based on the latest technology cultivated from
more than 70 years of experience with
electric forklift trucks, the NICHIYU electric towing tractors feature clean, quiet and
powerful operation in the field resulting in a better work environment.
With choices from a wide range of models, NICHIYU tractors can be matched to the needs
of a particular application such as plant, factory, market, railway station, airport,
distribution center, and other facilities.
NICHIYU developed the powerful drive motors, drive units and controls to provide high
transporting efficiency. The power source is the industrial battery which provides a stable,
safe and low cost operation when compared with the engine powered tractors.
Each component and unit of the tractor are logically placed in the chassis for ease of
maintenance. Charging the battery is also made easy by the automatic.

Clean, quiet battery power

Nichiyu, the battery forklift pioneer, introduces a clean, quiet,
battery-powered towing tractor featuring a wide array of advanced
mechatronics technology throughout. We offer several types with varied
features, each of which is applicable to particular towing load and driving
conditions.

The power to tow heavy loads

In addition to boasting increased power, these models incorporates Nichiyu’s own
motor, control system, drive system and other features. This powerful towing force
greatly reduces the labor involved in the transportation tasks typical of a factory or
market. What’s more, the heavy towing capacity minimizes conveyance work between processes.

Low maintenance

Compared with gas-powered tractors, this battery-powered model uses a more stable,
easy-to-use power supply (as provided by hydroelectric, thermal or nuclear power
plants).
In addition, the low cost of recharging (fuel cost) is attractive, with each charge
providing many hours of operation.

Operator-friendly operation

Everything in this operator-centered design is focused on ergonomics, including a
spacious seat, highly visible indicator panel and concentrated layout of the various
controls

Nichiyu Towing Tractor NTT75 | 3 ton, Specifications

Rated drawbar pull N/[kgf] : 735 (75]
Towing capacity (kg) : 3000.

Laden (kg) : 6
Travel speed Unladen (kg) : 8.

Gradeability (laden) (km/h) : –
Min.turning radius (km/h) : 1375.

Overall length (incl.coupler) : 1345
Length of coupler (mm) : 95.

Overall width (mm) : 825
Overall height (mm) : 1180.

height of coupler center (from floor) (mm) : 280
Wheelbase (mm) 900.

Front (mm) 210
Overhang Rear (mm) 140.

Tread Front (mm) –
Rear (mm) 685.

Service weight (without battery) (mm) 415
Battery weight Min./ Maх. 210/230

Tyre Rubber Rubber : Rubber
Tyre Front tyre (quantity) 235 x 120 (1).

Rear tyre (quantity) 178 x 73 (2)
Motor : (kW) 1.6

Control system : Inverter System
Battery Standard : 24 V / 250 Ah/ 5Hr

Charger : Authomatic Stationary Charger
Notes: Towing capacity was calculated under flat road and rolling resistance 0.025.
*All specifications are subject to change without notice due to further improvement
or modifications.
