Sakai Combined Roller TW504 | 3.4 ton
BELIALAT.COM support unit, parts, service, rental, maintenance contract, overhaul, reconditioned Sakai Combined Roller TW504 | 3.4 ton

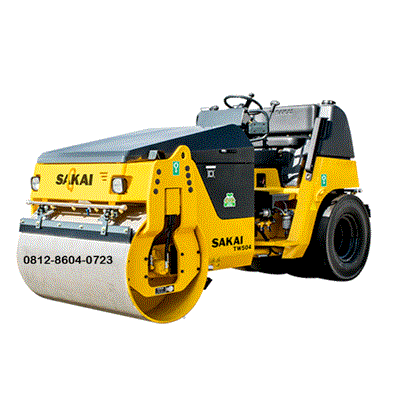

The Sakai TW504 is a versatile 3.4–3.6 ton combined roller that pairs a front vibratory drum with rear pneumatic tires.
This design allows you to achieve both high-density compaction (via the drum) and a smooth, sealed surface finish (via the tires) in a single pass.
Below are the detailed technical specifications for the unit:
Weights & Dimensions
The TW504 is classified in the 4-ton class, with a standard operating weight of approximately 3,440 kg (3.4 tons).
Feature Specification (Metric) Specification (Imperial).
Operating Weight 3,440 kg 7,585 lbs.
Max Operating Weight 3,620 kg 7,980 lbs.
Overall Length 3,105 mm 122 in.
Overall Width 1,390 mm 55 in.
Compaction Width 1,300 mm 51 in.
Drum Diameter 800 mm 31.5 in.
Wheelbase 2,300 mm 91 in.
Ground Clearance 280 mm 11 in.
Engine & Performance
Equipped with a reliable Kubota diesel engine, the TW504 includes an ECO mode that can reduce fuel consumption by up to 20%.
Engine Model: Kubota D1703-M-DI-EF03 (Tier 4 Final).
Type: 3-Cylinder, Water-cooled, 4-cycle diesel.
Rated Output: 18.2 kW (24 HP)7 @ 2,200 rpm.
Travel Speed: 0 – 10 km/h (0 – 6.2 mph).
Gradeability: 38% (21 circ).
Compaction System (Front Drum).
The front drum features a high-low amplitude selector, making it adaptable for various asphalt thicknesses.
Vibration Frequency: 52 Hz (3,120 vpm).
Centrifugal Force (Low / High): 26.5 / 34.3 kN.
Nominal Amplitude (Low / High): 0.30 / 0.40 mm.
Rear Tires: 4 Tires (Size: 10.5 / 80-16-6PR).
Fluid Capacities & Features
Fuel Tank: 50 L (13.2 gal).
Water Sprinkler Tank: 310 L (81.9 gal) — includes a triple-filtered anti-clog system.
Release Agent Tank: Included (for tire treatment to prevent asphalt pickup).
Safety: Standard ROPS bar, emergency brake pedal, and “1m x 1m” visibility design for operator safety.
Note: The “Combined” (TW) designation means it utilizes a steel drum for initial breakdown and rubber tires for the “kneading” effect that seals the asphalt mat.
