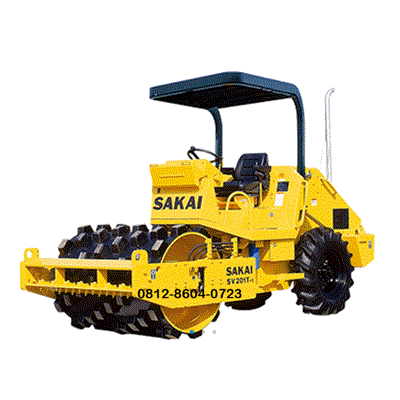

Sakai Drum Roller SV201T1K | 2.2 ton

Description

Sakai Drum Roller SV201T1K | 2.2 ton

BELIALAT.COM support unit, parts, service, rental, maintenance contract, overhaul, reconditioned Sakai Drum Roller SV201T1K | 2.2 ton

The Sakai SV201T-1K is a high-performance vibratory single drum roller primarily designed for medium-duty soil compaction. While the SV201 series varies by model, the “T” designation usually refers to the Padfoot (Sheepsfoot) drum version, whereas the “D” model is the smooth drum version.
It is important to note that while the “200” series nomenclature can be confusing, the SV201-1K actually has an operating weight closer to 4.5 tons, though it is often compared to 2–3 ton class machines due to its compact width.

Key Specifications: Sakai SV201T-1K

Feature Specification.
Operating Weight Approx. 4,520 kg (9,960 lbs).
Load on Front (Drum) 2,260 kg (4,980 lbs).
Load on Rear (Tires) 2,260 kg (4,980 lbs).
lass=”yoast-text-mark” />>Drum Type Padfoot (Sheepsfoot).
ass=”yoast-text-mark” />>Drum Width 1,370 mm (54 in).
>Drum Diameter 1,050 mm (41 in).

Performance & Engine

Engine: Kubota V3307-DI-T (Diesel, Water-cooled, 4-cycle, 4-cylinder with Turbocharger).
Net Power: Approx. 54.6 kW (73 HP) @ 2,200 rpm.
Centrifugal Force: 72 kN (16,186 lbs).
Vibration Frequency: 30 Hz (1,800 vpm).
Nominal Amplitude: 1.52 mm (0.06 in).
Gradability: 55%.</p>

Dimensions

Overall Length: 4,210 m

m.
>Overall Width: 1,570 mm.
>Overall Height: 2,600 mm (to top of ROPS/Cab).
Wheelbase: 2,330 mm.
Ground Clearance: 315 mm.

Main Features

Traction: Excellent gradeability and traction for cohesive soils (clays, silts) due to the padfoot design.
Safety: Standard ROPS (Roll-Over Protective Structure) and a failsafe braking system.
Maintenance: Features a fully opening engine hood and grouped service points for easy daily checks.
Note: If you are specifically looking for a 2.2-ton unit, you might be looking for the Sakai SW320/SW330 series (Tandem rollers) or the TW350 (Combined rollers), as the SV201 is a significantly heavier 4.5-ton class machine.
