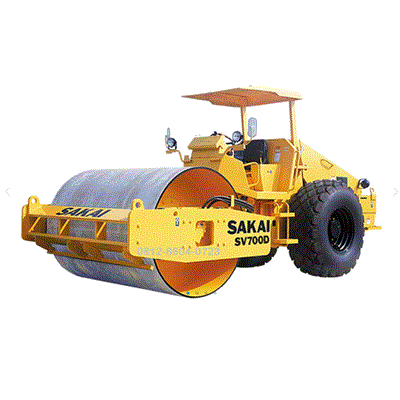

Sakai Drum Roller SV700D | 14.8 ton

Description

Sakai Drum Roller SV700D | 14.8 ton

BELIALAT.COM support unit, parts, service, rental, maintenance contract, overhaul, reconditioned Sakai Sakai Drum Roller SV700D | 14.8 ton

Specification Unit Sakai Drum Roller SV700D | 14.8 ton

The Sakai SV700D is a high-performance single-drum vibratory roller designed for medium to large soil compaction projects.
While often referred to in the 14-15 ton class, its maximum operating weight actually extends slightly above that for increased compaction force.
Below are the detailed technical specifications for the SV700D:

Weights & Dimensions

The SV700D is balanced for high traction, with a significant portion of its weight concentrated over the front drum.
Feature Specification (Metric) Specification (Imperial);
Operating Weight (w/ Awning) 14,950 kg (32,960 lbs).
Max Operating Weight 15,080 kg (33,245 lbs).
Load on Front Axle 8,500 kg (18,740 lbs).
Load on Rear Axle 6,450 kg (14,220 lbs).
Overall Length 5,900 mm (232 in).
Overall Width 2,290 mm (90 in)
Overall Height (w/ Awning) 2,840 mm (112 in).
Wheelbase 3,000 mm (118 in).

Drum & Compaction Performance

The SV700D features one of the highest amplitudes in its class, providing deep compaction depth.
Drum Width: 2,130 mm (84 in).
Drum Diameter: 1,530 mm (60 in).
Shell Thickness: 32 mm (1.3 in) — Ultra-thick for durability.
Vibration Frequency: 27.5 / 36.7 Hz (1,650 / 2,200 vpm).
Centrifugal Force: 220 / 275 kN (49,455 / 61,820 lbs).
Nominal Amplitude: 0.90 / 2.00 mm (0.035 / 0.079 in).

Engine & Drivetrain

Equipped with a robust Isuzu engine, it is built for fuel efficiency and high torque.
Engine Model: Isuzu BB-6BG1TRJ (Turbocharged).
Type: 4-cycle, 6-cylinder, water-cooled diesel.
Rated Output: 124 kW (166 HP) @ 2,200 rpm.
Transmission: Hydrostatic (2-speed ranges).
Max Travel Speed: 10 km/h (6.2 mph).
Gradeability: 62% (32°).
Fuel Tank Capacity: 300 L (79.3 gal).

Key Features

Vibration Isolation: Patented dual-rubber isolation system protects the operator and electronic gauges from heavy vibrations.
Serviceability: The engine hood opens fully, providing “ground-level” access to all hydraulic components and the engine.
Safety: Features a neutral-start mechanism and a standard emergency brake pedal.
Note: The SV700 series also includes the SV700T (Padfoot version) and SV700TF (Padfoot with blade/combi), which are heavier, typically reaching up to 18 tons.

Engine

Model : KUBOTA V3300.
Type : Water-cooled, 4-cycle direct injection.

Engine power
at rated engine speed 2800 rpm
ISO 14396 34.3 kW / 46.0 HP
ISO 9249 (net engine power) 33.7 kW / 45.2 HP

No. of cylinders : 4
Bore × stroke : 88 × 90 mm.

Displacement : 2.19 l.
Max. torque / engine speed :140 Nm / 1820 rpm.
Cooling system : Water

Fuel

Diesel fuel, conforming to EN590
Class 2/Grade D. Paraffinic fuel
capability (HVO, GTL, BTL),
conforming to EN 15940:2016

Transmission

Type : Hydrostatic
Pumps : 2 × variable displacement.

Hydraulic motors : 2 × axial pistons.
No. of speeds : 2.

Max. travel speed 16 km/h
Automatic working and parking brakes

Hydraulic system

Type Komatsu CLSS
Hydraulic pump Gear pump.

Max. pump flow 62 l/min
Max. operating pressure 190 bar
Max. pump flow – “Super Flow” (option) 100 l/min

Performance

Rated operating capacity : 345 kg  ( 760.60 in )
Tipping load : 690 kg ( 1521.19 in ).

Maximum travel speed : 10.3 km/h  ( 6.4 mph )
Maximum drawbar pull : 10.1 kN ( 2270.57 lbf ).

Lift arm breakout force : 7.6 kN ( 1708.55 lbf )
Bucket breakout force : 8.7 kN ( 1955.84 lbf )
Gradeability : 25°

Hydraulic System

Maximum flow : 38 L/min ( 10.04 gal/min )
Pressure – Working equipment circuit : 19 MPa ( 2755.72 psi ).

Pressure – Travel circuit : 25 MPa ( 3625.94 psi )
Pressure – Pilot circuit : 2.4 MPa ( 348.09 psi )

Loader

Operating capacity (standard bucket) 680 kg
Tipping load (standard bucket) 1360 kg.

Standard bucket capacity (ISO 7546) 0.35 m³
Bucket breakout force (ISO 14397) 1383 daN (1410 kg).

Operating capacity with pallet forks 490 kg
Max. loading height with forks 2660 mm
Reach with forks 1565 mm

Operating weight (appr.)

Weight, including open cab, operator (75 kg), liquids,
filled tank and standard equipment (without bucket) : 2675 kg.

Standard bucket (1580 mm) + 172 kg
Additional counterweight + 120 kg
Front door + 40 kg

Service refill capacities

Fuel tank 67 l
Cooling system 9.0 l
Engine oil 7.5 l
Hydraulic system 27 l
Final transmission 14.4 l

Environment

Engine emissions Fully complies with EU Stage V
exhaust emission regulations.

Noise levels.
LwA external 85 dB(A) (2000/14/EC Stage II)
LpA operator ear 101 dB(A) (ISO 6396 dynamic test).

Vibration levels (EN 12096:1997)
Hand/arm ≤ 2.5 m/s² (uncertainty K = 1.2 m/s²)
Body ≤ 0.5 m/s² (uncertainty K = 0.2 m/s²)
