Sakai Plate Compactor PF120 | 125 kg

Description

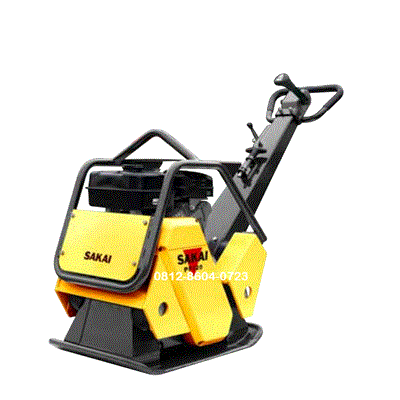

Sakai Plate Compactor PF120 | 125 kg

BELIALAT.COM support unit, parts, service, rental, maintenance contract, overhaul, reconditioned Sakai Plate Compactor PF120 | 125 kg

The Sakai PF120 is a versatile and high-performance forward-reverse (reversible) plate compactor.
Known for its durability and smooth operation, it is specifically designed for compacting granular materials, sand, and semi-cohesive soils in confined areas like trenches and retaining walls.
Here are the detailed technical specifications for the 125 kg unit:

General Specifications

Model PF120.
Operating Weight 125 kg (276 lbs).
Centrifugal Force 26 kN (5,845 lbs).
Vibration Frequency 93 Hz (5,580 vpm).
Working Speed 0 – 23 m/min (0 – 75 ft/min).
Gradeability 35%.

Engine Details

Engine Make/Model Honda GX160.
lass=”yoast-text-mark” />>Engine Type Gasoline, Air-cooled, 4-cycle.
Max. Output 4.0 kW (5.4 HP).
Fuel Tank Capacity 3.6 Liters (approx. 1 gallon).
Starting System Recoil Starter (Manual).

Dimensions & Plate Size

Overall Length: 1,080 mm (42.5 in).
“yoast-text-mark” />>Overall Width: 400 mm (15.7 in).
>Overall Height: 995 mm (39.2 in).
Plate Size (W x L): 400 mm x 600 mm (15.7 x 23.6 in).

Key Features & Benefits

Hydrostatic Operation: Equipped with a hydrostatic lever for seamless transitions between forward and reverse movements, making it easy to maneuver in tight spots.
Shock Isolation: Features Sakai’s original rubber shock absorbers that significantly reduce hand-arm vibration for the operator.
Heavy-Duty Construction: A hardened steel base plate and a fully sealed belt cover protect internal components from gravel and debris, extending the machine’s service life.
Easy Maintenance: Simple design with high-quality components ensures minimal downtime and easy access for servicing.
