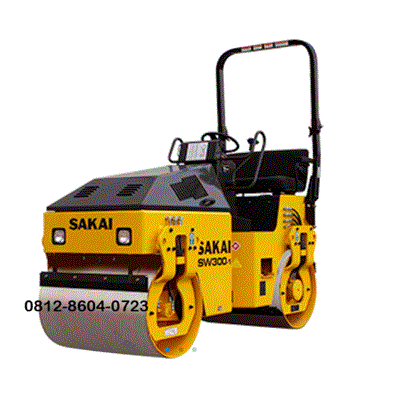

Sakai Tandem Roller SW300 | 2.7 ton

Description

Sakai Tandem Roller SW300 | 2.7 ton

BELIALAT.COM support unit, parts, service, rental, maintenance contract, overhaul, reconditioned Sakai Tandem Roller SW300 | 2.7 ton

The Sakai SW300-1 is a compact vibratory tandem roller designed for small-to-medium asphalt and soil projects like parking lots, driveways, and road maintenance.1 It is well-regarded for its high frequency, which allows for smooth finishing and efficient compaction.
Here are the technical specifications for the Sakai SW300-1 (2.7-ton class):

Weights & Performance

Operating Weight: 2,725 kg (approx.3 2.7 tons).
Empty Weight: 2,520 kg.
Centrifugal Force: 27.5 kN (6,175 lbs).
Vibration Frequency: 66.7 Hz (4,000 vpm).
Amplitude: 0.32 mm.
Gradability: 43% (23 circ).
Max Travel Speed: 12 km/h.

Engine Specifications

Make/Model: Kubota D1703-M-ET01.
Type: Diesel, water-cooled, 4-cycle, 3-cylinder.
Rated Output: 26.1 kW (35 HP) @ 2,600 rpm.
Fuel Tank Capacity: 50 Liters.
Emission Standard: EPA Tier 4 Interim / Stage IIIA equivalent.

Dimensions

Overall Length: 2,650 mm.
lass=”yoast-text-mark” />>Overall Width: 1,130 mm.<br class=”yoast-text-mark” />>Overall Height: 1,750 mm.
Wheelbase: 1,950 mm.
Drum Width: 1,000 mm (39 inches).
Drum Diameter: 700 mm.
Curb Clearance: 485 mm.
Side Clearance: 65 mm.

Key Features

Hydraulic System: Fully hydrostatic drive and vibration system for smooth operation.
Water Sprinkler System: Pressurized system with a 180-liter tank capacity and non-corrosive nozzles.
Safety Features: Includes an emergency brake pedal (hydrostatic + SAHR system) and excellent 360 circ visibility.
Maintenance: One-touch spray nozzles can be removed without tools for easy cleaning.
