Sakai Tandem Roller SW330 | 2.9 ton

Description

Sakai Tandem Roller SW330 | 2.9 ton

BELIALAT.COM support unit, parts, service, rental, maintenance contract, overhaul, reconditioned Sakai Tandem Roller SW330 | 2.9 ton

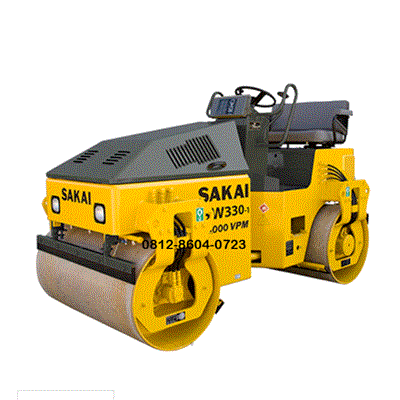

The Sakai SW330 is a 3-ton class vibratory tandem roller designed for high-efficiency compaction on small to medium projects like streets, parking lots, and driveways.
Its key feature is a high vibration frequency of 4,000 vpm (66.7 Hz), which allows for smooth finishes at higher speeds.

Key Technical Specifications

Category Specification Detail
Weight Operating Weight 2,970 kg (approx. 3.0 tons).

Load on Front Axle 1,440 kg.
Load on Rear Axle 1,530 kg.

Dimensions Overall Length 2,650 mm.
Overall Width 1,430 mm.

Overall Height 1,750 mm.
Wheelbase 1,950 mm.

Drum Drum Width 1,300 mm (51 inches).
Drum Diameter 700 mm.

Shell Thickness 13 mm.
Performance Vibration Frequency 66.7 Hz (4,000 vpm).

Centrifugal Force 31.4 kN (3,202 kgf).
Travel Speed 0 – 12 km/h.
Gradability 38% (approx. 20°)
.
Engine & Drive System

Engine Model: Kubota D1703-M-ET01.
Type: Diesel, water-cooled, 3-cylinder.
Rated Output: 26.1 kW (35 HP) @ 2,800 rpm.
Transmission: Hydrostatic drive (all-drum drive).
Steering: Articulated steering for tight turning (radius: 3.8m outer).

Operational Capacities

Fuel Tank: 50 Liters.
Water Sprinkler Tank: 180 Liters (pressurized system).
Hydraulic Tank: 42 Liters.

Key Features

High Frequency: The 4,000 vpm frequency ensures optimal impact spacing, reducing the risk of “rippling” on asphalt surfaces.
Safety: Features an emergency brake pedal (hydrostatic and multi-disc system) and excellent 360-degree visibility from the bench seat.
Maintenance: One-touch mounting water spray nozzles can be removed without tools for easy cleaning.
