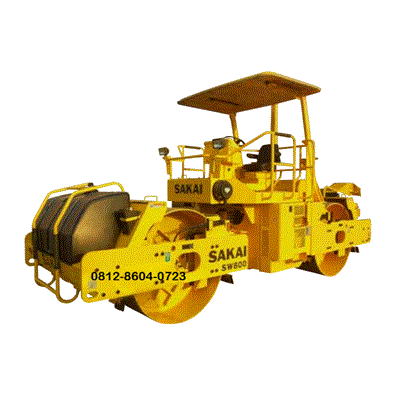

Sakai Tandem Roller SW800 | 9.8 ton

Description

Sakai Tandem Roller SW800 | 9.8 ton

BELIALAT.COM support unit, parts, service, rental, maintenance contract, overhaul, reconditioned Sakai Tandem Roller SW800 | 9.8 ton

The Sakai SW800 is a 10-ton class high-frequency tandem vibratory roller specifically designed for efficient asphalt compaction.
Its standout feature is its high-frequency vibration (4,000 vpm), which allows for faster operating speeds (up to 60\% faster than conventional rollers) while maintaining a smooth and dense finish.
Here are the detailed unit specifications for the Sakai SW800:

General Weight & Performance

Operating Weight: 9,880 kg (21,780 lbs) — often referred to as a 9.8 to 10-ton unit.
Max Operating Weight: 10,480 kg (23,105 lbs).
Load on Front Drum: 4,560 kg.
Load on Rear Drum: 5,320 kg.
Travel Speed: 0 – 13 km/h (0 – 8.1 mph).
Gradeability: 33% (18°).

Engine Specifications

Make & Model: Isuzu 4BG1 TRB-06 (Turbocharged Diesel).
Type: Water-cooled, 4-cycle, 4-cylinder, direct injection.
Rated Output: 86.7 kW (116 HP) @ 2,500 rpm.
Fuel Tank Capacity: 220 Liters (58 gallons).

Compaction (Vibratory) System

Vibration Frequency: * High: 4,000 vpm (66.7 Hz).
Low: 3,000 vpm (50 Hz).
Centrifugal Force (per drum): * @ 4,000 vpm: 121 kN (27,115 lbs) @ 3,000 vpm: 108 kN (24,250 lbs).
Amplitude: 0.33 mm (0.013 in) to 0.55 mm (0.022 in).

Dimensions & Capacities

Overall Length: 5,690 mm (224 in).
lass=”yoast-text-mark” />>Overall Width: 2,000 mm (79 in).
>Overall Height (to exhaust): 3,120 mm (123 in).
Wheelbase: 3,300 mm (130 in).
Drum Width: 1,700 mm (67 in).
Drum Diameter: 1,300 mm (51 in).
Water Sprinkler Tank: 1,000 Liters total (two 500 L tanks).

Key Features

180° Swiveling Operator Console: Provides excellent visibility for the operator in both directions.
Triple Braking System: Includes a hydrostatic service brake, a spring-applied parking brake, and a standard emergency pedal brake for high safety levels.
Efficiency: Designed to finish compaction while the asphalt is still hot, preventing cracks and ensuring high density.
Note: There is also a variant called the SW800N, which uses Oscillation (horizontal vibration) instead of standard vertical vibration, making it safer for bridge decks or areas near sensitive buildings.
