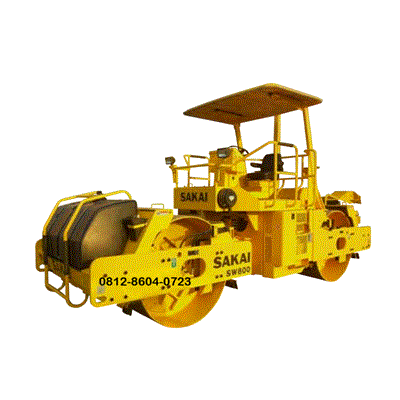

Sakai Tandem Roller SW800N | 10.2 ton

Description

Sakai Tandem Roller SW800N | 10.2 ton

BELIALAT.COM support unit, parts, service, rental, maintenance contract, overhaul, reconditioned Sakai Tandem Roller SW800N | 10.2 ton

The Sakai SW800N is a 10-ton class vibratory tandem roller specifically designed for high-performance asphalt compaction.
While the standard SW800 uses vertical vibration, the “N” variant is distinguished by its Oscillation technology, making it ideal for thin pavements, bridge decks, and sensitive urban areas where traditional vibration might cause structural damage or excessive noise.
Below are the detailed specifications for the Sakai SW800N:

General Weights & Dimensions

Feature Specification;
Operating Weight 10,290 kg (approx. 10.3 tons).
Max Operating Weight 10,890 kg.
Overall Length 5,690 mm.
Overall Width 2,000 mm.
Compaction (Drum) Width 1,700 mm.
Drum Diameter 1,270 mm (Oscillation drum).
Wheelbase 3,300 mm.

Engine & Performance

The unit is powered by a reliable Isuzu industrial engine designed for heavy-duty cycles.
Engine Model: Isuzu 4BG1 TRB-06 (Turbocharged).
Rated Output: 86.7 kW (116 HP) @ 2,500 rpm.
Drive System: Hydrostatic (All-wheel drive on both drums).
Max Travel Speed: 11.0 km/h.
Gradeability: 33% (approx. 18°).

Compaction System (Oscillation)

Unlike standard vibratory rollers that bounce the drum vertically, the SW800N uses a horizontal “massaging” motion.
Vibration Type: Oscillation (Horizontal Vibration).
Frequency: Up to 3,000 vpm (50 Hz).
Static Linear Pressure (Front/Rear): 28.1 kg/cm / 32.5 kg/cm.
Advantages: * Prevents aggregate crushing in thin layers.
Allows for compaction at lower temperatures.
Safe for use over pipes and bridge structures.

Fluid Capacities

Fuel Tank: 220 Liters.
Water Sprinkler Tank: 1,000 Liters (500L x 2 tanks).
Hydraulic Oil Tank: 80 Liters.

Key Features

180° Swiveling Console: The operator’s seat and controls can rotate 180 degrees for better visibility of drum edges.
Gear Drive System: Sakai uses a gear-driven oscillation system which significantly reduces maintenance compared to belt-driven competitors.
Triple Filtration: The water sprinkler system features three layers of filters to prevent nozzle clogging during long shifts.
