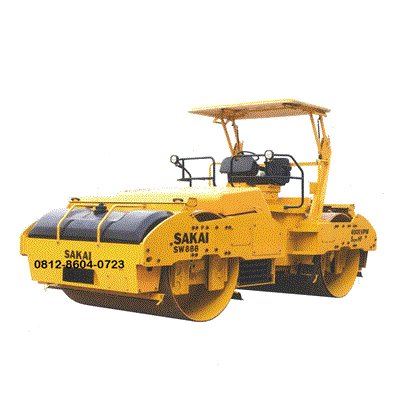

Sakai Tandem Roller SW988 | 12.8 ton

Description

Sakai Tandem Roller SW988 | 12.8 ton

BELIALAT.COM support unit, parts, service, rental, maintenance contract, overhaul, reconditioned Sakai Tandem Roller SW988 | 12.8 ton

The Sakai SW988 is a high-frequency vibratory tandem roller designed for heavy-duty asphalt compaction, such as highways and large-scale infrastructure projects.
At approximately 12.8 tons, it offers a balance of high centrifugal force and precision control.
Below are the detailed technical specifications for the Sakai SW988:

Weights & Dimensions

Category Specification;
Operating Weight 12,880 kg (28,395 lbs).
Max Operating Weight 13,610 kg (30,005 lbs).
lass=”yoast-text-mark” />>Overall Length 5,940 mm.<br class=”yoast-text-mark” />>Overall Width 2,325 mm.
>Overall Height (with Awning) 3,190 mm.
Wheelbase 3,540 mm.
>Drum Width 2,130 mm (84 inches).
>Drum Diameter 1,400 mm.
>Drum Shell Thickness 22 mm.

Engine

Make/Model: DEUTZ BF4M2012C (Tier 2 Equivalent).
Type: 4-cycle, water-cooled, direct injection with turbocharger.
Rated Output: 100.0 kW (134 HP) @ 2,400 rpm.
Fuel Tank Capacity: 292 Liters.

Compaction (Vibration System)

The SW988 is known for its high-frequency vibration, which allows for faster rolling speeds while maintaining optimal impact spacing.
Vibration Frequency: 41.7 – 66.7 Hz (2,500 – 4,000 vpm).
Centrifugal Force: 69 – 176 kN (Max approx.3 17,950 kgf).
Nominal Amplitude: 0.35 mm (Low) / 0.60 mm (High).
Water Sprinkler Tank: 600 Liters x 2 (1,200L total capacity).

Performance & Drive

Travel Speed: 0 – 11 km/h.
Gradeability: 28% (15°).
Turning Radius: 4.2 m (Inside) / 6.3 m (Outside).
Braking System: * Service: Hydrostatic dynamic braking.
Secondary/Parking: Spring-Applied, Hydraulically Released (SAHR).
Emergency: Sakai’s unique emergency brake pedal.

Key Features

Counter-Rotation: The eccentric weights inside the drums rotate in opposite directions to cancel out horizontal forces, ensuring a smoother mat finish.
Visibility: Excellent 1m x 1m visibility around the machine for increased safety.
Easy Maintenance: The engine is mounted on the front frame, separated from the operator station, which reduces vibration for the driver and simplifies access for servicing.
