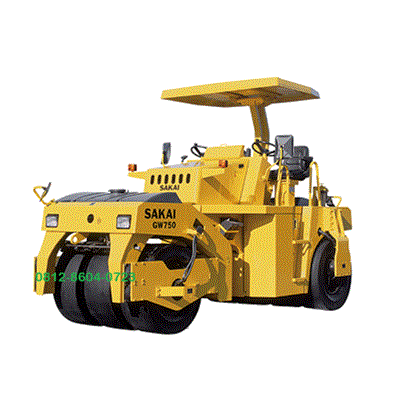

Sakai Tire Roller GW750 | 9 ton

Description

Sakai Tire Roller GW750 | 9 ton

BELIALAT.COM support unit, parts, service, rental, maintenance contract, overhaul, reconditioned Sakai Tire Roller GW750 | 9 ton

Specification Unit Sakai Tire Roller GW750 | 9 ton

WEIGHTS

Max. operating weight kg(lb) 9,040(19,930)
Operating weight kg(lb) 8,700(19,185)
Load on front axle kg(lb) 3,710(8,180)
Load on rear axle kg(lb) 4,990(11,005)

DIMENSIONS

Overall length(L) mm(in) 4,540(179)
Overall width (W) mm(in) 2,200(87)
overall height(H) mm(in) 2,975(117)
Wheelbase (L’) mm(in) 3,000(118)

ENGINE

Make ISUZU
Model DD-4BG1T (Tier2) 4JJ1XDIA (Tier3)
Type Diesel, Water-cooled, 4-cycle, with turbocharger
VIBRATING SYSTEM
Drive Hydrostatic
Vibrator type Variable Eccentric shaft

Fuel

Diesel fuel, conforming to EN590
Class 2/Grade D. Paraffinic fuel
capability (HVO, GTL, BTL),
conforming to EN 15940:2016

Transmission

Type : Hydrostatic
Pumps : 2 × variable displacement.

Hydraulic motors : 2 × axial pistons.
No. of speeds : 2.

Max. travel speed 16 km/h
Automatic working and parking brakes

Hydraulic system

Type Komatsu CLSS
Hydraulic pump Gear pump.

Max. pump flow 62 l/min
Max. operating pressure 190 bar
Max. pump flow – “Super Flow” (option) 100 l/min

Performance

Rated operating capacity : 345 kg  ( 760.60 in )
Tipping load : 690 kg ( 1521.19 in ).

Maximum travel speed : 10.3 km/h  ( 6.4 mph )
Maximum drawbar pull : 10.1 kN ( 2270.57 lbf ).

Lift arm breakout force : 7.6 kN ( 1708.55 lbf )
Bucket breakout force : 8.7 kN ( 1955.84 lbf )
Gradeability : 25°

Hydraulic System

Maximum flow : 38 L/min ( 10.04 gal/min )
Pressure – Working equipment circuit : 19 MPa ( 2755.72 psi ).

Pressure – Travel circuit : 25 MPa ( 3625.94 psi )
Pressure – Pilot circuit : 2.4 MPa ( 348.09 psi )

Operating weight (appr.)

Weight, including open cab, operator (75 kg), liquids,
filled tank and standard equipment (without bucket) : 2675 kg.

Standard bucket (1580 mm) + 172 kg
Additional counterweight + 120 kg
Front door + 40 kg

Service refill capacities

Fuel tank 67 l
Cooling system 9.0 l
Engine oil 7.5 l
Hydraulic system 27 l
Final transmission 14.4 l

Environment

Engine emissions Fully complies with EU Stage V
exhaust emission regulations.

Noise levels.
LwA external 85 dB(A) (2000/14/EC Stage II)
LpA operator ear 101 dB(A) (ISO 6396 dynamic test).

Vibration levels (EN 12096:1997)
Hand/arm ≤ 2.5 m/s² (uncertainty K = 1.2 m/s²)
Body ≤ 0.5 m/s² (uncertainty K = 0.2 m/s²)

The Sakai GW750 is a unique “Vibratory Pneumatic Tire Roller.”1 Although it has an operating weight of approximately 9 tons, it is designed to achieve the compaction results of a 25-ton static tire roller by combining traditional kneading action with high-frequency vibration.
Below are the detailed technical specifications for the GW750 and the updated GW750-2 models.

Weight & Dimensions

Specification Metric Units Imperial Units:
Operating Weight (with ROPS) 9,240 – 9,280 kg 20,370 – 20,460 lbs.
Max. Operating Weight 9,100 kg 20,062 lbs.
Overall Length 4,540 mm 179 in.
Overall Width 2,200 mm 87 in.
Wheelbase 3,000 mm 118 in.
Compaction Width 1,950 mm 77 in.
Ground Clearance 265 mm 10 in.

Engine & Performance

Engine Options:
Tier 2: Isuzu DD-4BG1T (78.8 kW / 106 HP).
Tier 3: Isuzu 4JJ1XDIA (92.0 kW / 123 HP).
Speed Range: 0 – 12 km/h (3 speeds available).
Gradeability: 38% (21 circ).
Vibration Frequency: 40 Hz (2,400 VPM).
Centrifugal Force: 4-stage adjustable, ranging from 8 kN to 58 kN. (approx.4 1,765 to 13,140 lbs) per axle.
Amplitude: 4 settings (0.10 mm to 0.74 mm).

Tire & Steering System

Number of Tires: 7 tires total (3 Front / 4 Rear).
Tire Size: 14/70-20-12PR (Smooth tread).
Steering Type: Articulated (Center-pin).
Turning Radius: 5.4 m (Outer) / 3.8 m (Inner).
All-Wheel Drive: Standard, to prevent “shoving” or pushing of Hot Mix Asphalt (HMA).

Fluid Capacities

Fuel Tank: 130 Liters (34.3 gal).
Hydraulic Tank: 65 Liters (17.2 gal).
Water Sprinkler Tank: 600 Liters (158 gal) — usually two 300L tanks.

Key Features

Dynamic Kneading Action: Unlike standard rollers, this model vibrates the pneumatic tires, allowing a 9-ton machine to compact thick layers (up to 25 cm) that usually require a 25-ton machine.
Dual Spray System: Equipped with both water and release agent pressurized spray systems to prevent asphalt from sticking to the tires.
Versatility: Ideal for thin HMA overlays, aggregate bases, and roller-compacted concrete (RCC).
