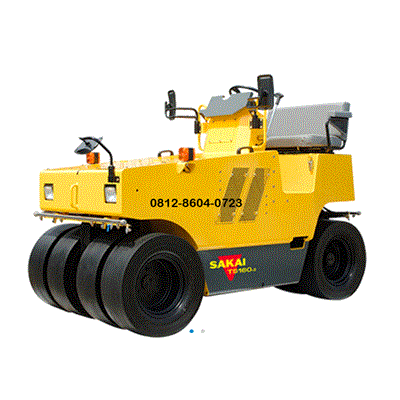

Sakai Tire Roller TS160 | 2.9 ton

BELIALAT.COM support unit, parts, service, rental, maintenance contract, overhaul, reconditioned Sakai Tire Roller TS160 | 2.9 ton

The Sakai TS160-2 is a compact, static pneumatic tire roller designed specifically for small-scale paving jobs, parking lots, and sidewalks.
It is highly regarded for its ability to produce a smooth, fine-textured finish on asphalt and granular materials.
Below are the detailed specifications for the 2.9-ton unit:

Weights & Capacities

Operating Weight: 2,870 kg (approx. 2.9 tons).
Max Operating Weight: 2,980 kg.

Front Axle Load: 1,650 kg.
Rear Axle Load: 1,220 kg.

Fuel Tank Capacity: 36.5 L.
Water Spray Tank: 185 L.

Engine & Performance

Engine Model: Kubota D1105-K3A.
Type: Water-cooled, 4-cycle, 3-cylinder diesel.

Rated Output: 14.6 kW (20 HP) @ 2,300 rpm.
Max Speed: 10 km/h (forward and reverse).

Gradeability: 47% (25°).
Turning Radius: 2.4 m (inside) / 4.1 m (outside).

Dimensions & Tires

Overall Length: 2,675 mm.
lass=”yoast-text-mark” />>Overall Width: 1,300 mm.

Overall Height: 1,760 mm.
Wheelbase: 1,900 mm.

Compaction Width: 1,300 mm.
>Tire Configuration: 7 tires total (4 Front / 3 Rear).

Tire Size: 9.5/65-15-6PR.
lass=”yoast-text-mark” />>Tire Overlap: 83 mm (ensures a flat, seamless surface).

Key Features

Braking System: Hydrostatic dynamic braking via the FNR lever, plus a secondary/emergency spring-applied hydraulically released (SAHR) brake.

Visibility: A unique frame design and bench seat allow the operator to see the ground clearly, making it easier to compact right up to the edge of curbs.

Maintenance: Features a resin sprinkler tank with filters, stainless steel spray pipes, and one-touch removable nozzles for easy cleaning.
