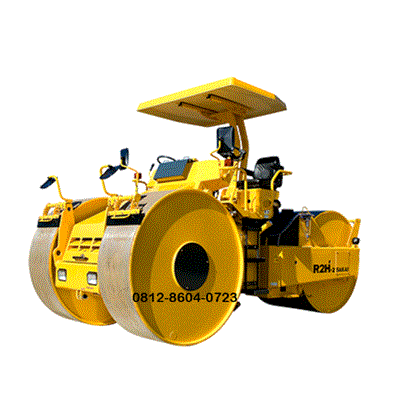

Sakai Wheel Roller R2H4 | 13.7 ton

Description

Sakai Wheel Roller R2H4 | 13.7 ton

BELIALAT.COM support unit, parts, service, rental, maintenance contract, overhaul, reconditioned Sakai Wheel Roller R2H4 | 13.7 ton

Specification Unit Sakai Wheel Roller R2H4 | 13.7 ton

MODEL R2H-4
WEIGHTS
Operating weight kg(lb) 13,700(30,205)
Load on front kg(lb) 6,760(14,905)
Load on rear kg(lb) 6,940(15,300)

DIMENSIONS

Overall length mm(in) 5,020(198)
Overall width mm(in) 2,100(83)
Overall height mm(in) 3,060(120)
Wheelbase mm(in) 3,400(134)

ENGINE

Make KUBOTA
Model V3307-CR-T-EF05
Type Diesel, water cooled, 4 cycle, 4 cylinder with turbo charger

The Sakai R2H-4 is a 13.7-ton (operating weight) static three-wheel roller specifically designed for asphalt finishing where vibration is restricted, such as on bridge decks or thin lifts.
Here are the detailed technical specifications for the unit:

Weights & Dimensions

The R2H-4 is characterized by its high static linear pressure, which ensures uniform compaction across the entire 83-inch width.
Feature Specification (Metric) Specification (Imperial)
Operating Weight 13,700 kg 30,205 lbs
Max Operating Weight 14,080 kg 31,040 lbs
Overall Length 5,020 mm 198 in
Overall Width 2,100 mm 83 in
Overall Height (w/ ROPS) 3,115 mm 123 in
Wheelbase 3,400 mm 134 in
Ground Clearance 340 mm 13 in

Compaction Performance

This model uses a 3-drum configuration (2 front, 1 rear) to achieve high density without vibration.
Total Rolling Width: 2,100 mm (83 in).
Static Linear Pressure (Front): 602 N/cm (345 pli).
Static Linear Pressure (Rear): 618 N/cm (355 pli).
lass=”yoast-text-mark” />>Drum Sizes (Front x2): 550 mm width × 1,620 mm diameter.
>Drum Size (Rear x1): 1,100 mm width × 1,620 mm diameter.
>Drum Shell Thickness: 28 mm (1.1 in).

Engine & Drivetrain

The unit is powered by a reliable Kubota diesel engine, typically meeting Tier 4 Final emission standards in newer models.
Engine Make/Model: Kubota V3307-CR-T
Type: 4-cylinder, water-cooled, turbocharged diesel
Rated Output: 54.6 kW (73 HP) @ 2,200 rpm
Drive System: All-drum hydrostatic drive
Speed Ranges: * Low: 0–8 km/h (0–5 mph)
High: 0–16 km/h (0–10 mph)
Gradeability: 31% (17°)

Capacities & Systems

Fuel Tank: 100 L (26.4 gal)
Water Sprinkler Tank: 680 L (179.6 gal) — Includes a triple-filtered system to prevent nozzle clogging.
Hydraulic Oil Tank: 85 L (22.5 gal)
Braking System: Hydrostatic service brake, SAHR (Spring Applied Hydraulically Released) parking brake, and a combined emergency foot brake.

Key Features

ECO Mode: Reduces fuel consumption by up to 40% during operation.
Dual Operator Seats: Allows for better visibility of edges from either side of the machine.
Safety: Features 1m x 1m visibility standards and an optional Guardman (Auto Brake Assist) system for collision mitigation.
