TCM Forklift FD25 | 2.5 Ton

Description

TCM Forklift FD25 | 2.5 Ton

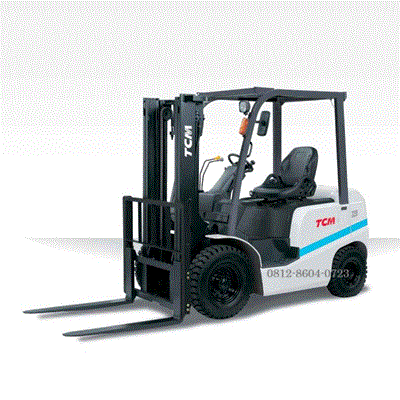

The TCM FD25 is a 2.5-ton diesel forklift, and like the FD30, it is a staple of the iNOMA and Smart Machine series.
It is essentially the more compact sibling of the 3-ton model, designed for better maneuverability in tighter aisles while maintaining high power.

Below are the technical specifications for the common TCM FD25T3 and FD25-E2 models.

Core Performance & Capacity

Specification Value
Rated Load Capacity 2,500 kg (2.5 Tons).

Load Center 500 mm.
Max. Lift Height 3,000 mm (Standard Simplex).

Free Lift 160 mm.
Turning Radius 2,240 mm (Approx. 160mm tighter than the FD30).

Max. Travel Speed 18.5 – 19.0 km/h.
Gradeability (Loaded) 22% – 27% (depending on transmission).

Engine & Transmission

Most TCM FD25 units utilize the highly reliable Isuzu C240 engine, though newer or regional variants may feature Nissan or Mitsubishi powerplants.

Engine Model: Isuzu C240 (Standard) / Nissan TD27 (Optional).
Type: 4-cylinder, water-cooled diesel.

Rated Power: ~35.4 kW @ 2,500 rpm.
Displacement: 2,369 cc.

Fuel Tank Capacity: 70 Liters.
Transmission: Manual (C3Z) or Powershift/Automatic (T3Z).

Physical Dimensions

The FD25 is slightly narrower and shorter than the FD30, making it ideal for standard warehouse racking.
Overall Length (to fork face): 2,555 mm – 2,560 mm.
Width: 1,150 mm.

Overall Height (to overhead guard): 2,090 mm – 2,130 mm.
Mast Height (lowered): 1,995 mm.

Wheelbase: 1,600 mm.
Service Weight: ~3,600 kg – 3,780 kg.

Key Features

Compact Chassis: A shorter wheelbase compared to the 3-ton model allows for a significantly smaller turning circle.
Operator Presence System (OPS): Automatically locks hydraulic and travel functions if the operator leaves the seat.

Maintenance Access: Features a wide-opening engine hood and removable side panels for easy daily checks.
Cooling System: Equipped with a high-capacity radiator and corrugated fin design for better heat dissipation in tropical climates.

Pro Tip: If you are operating in a very tight warehouse, check your Aisle Width requirement. For a standard 1.1m pallet, the FD25 typically requires an aisle width of approximately 4,090 mm.
