TCM Forklift FRB14-9LM | 1.4 Ton

Description

TCM Forklift FRB14-9LM | 1.4 Ton

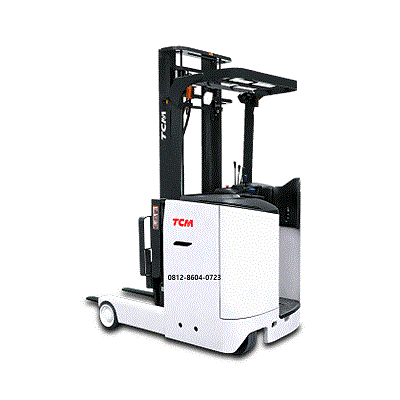

The TCM FRB14-9LM (often listed as J-FRB14-9LM) is a 1.4-ton electric, stand-up, multi-directional reach truck designed for high-density warehouse operations and narrow-aisle maneuvering.

Below are the core technical specifications for this model:

General Specifications

Model: J-FRB14-9LM
Power Type: Electric (Battery).

Operation Type: Stand-up / Multi-directional
Load Capacity: 1,400 kg (1.4 Ton)
Load Center: 500 mm

Dimensions & Weight

Overall Length: 2,030 mm
Overall Width: 1,250 mm.

Overall Height (Construction/Mast Lowered): 1,995 mm
Turning Radius (Spin Turn): 1,225 mm
Turning Radius (Right Angle Turn): 1,555 mm

Lifting Performance

Standard Max. Fork Height: 3,000 mm (3.0 meters)
Note: High-lift versions (FRHB14-9LM) can reach up to 4,000 mm or more depending on the mast configuration.
Fork Leveling: Automatic horizontal fork leveling (standard feature)

Battery & Power

Voltage: 48V
Max Battery Capacity (5hr rating): 210Ah
Drive System: AC Motor (Variable)

Key Performance Features

Multi-Directional Steering: It supports 360-degree travel, including transverse (sideways) travel, which is ideal for transporting long or bulky loads in tight spaces.
Stability Support System: Includes “Safety Cruise,” which limits descent speed on inclines, and “Curve Control” to adjust travel speed during turns.
Operator Ergonomics: Equipped with a presence switch pedal (deadman switch) and a password entry system option for security.

Operational Modes:

Spin Turn: Pivots around the center of the chassis.
Diagonal Mode: Facilitates angle changes over short distances.

Right Angle Turn: Enables 90-degree maneuvering in narrow aisles.
