TCM Order Picker LOD200 | 2 ton

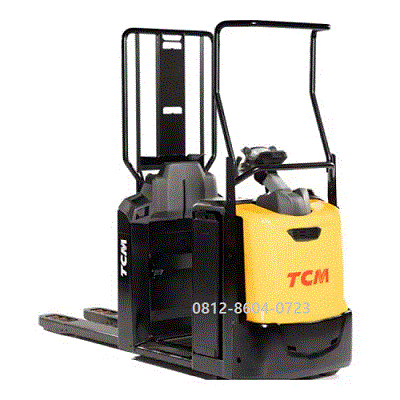

The TCM LOD200 is a low-level electric order picker designed for high-efficiency picking operations in warehouses.
The “D” in its name typically refers to its rising operator platform, which allows for ergonomic picking at first and second levels.
Below are the technical specifications for the 2-ton (2000 kg) capacity unit.

Core Technical Specifications

Feature Specification (Junior Chassis). Specification (Senior Chassis).
Model LOD200 (JN) / LOD200 (SN).
Load Capacity 2,000 kg , / 2,000 kg.
Load Center 600 mm 600 mm.
Battery Voltage 24 V / 24 V.
Lift Height (Forks) 230 mm / 230 mm.
Platform Height Up to 1,000 mm / Up to 1,000 mm.
Truck Width 790 mm / 790 mm.
Truck Length (Base) 1,349 mm + fork length 1,430 mm + fork length.
Turning Radius ~2,100 – 2,300 mm / ~2,200 – 2,400 mm.

Key Performance Features

Rising Operator Platform: The LOD model features a platform that can lift the operator to approximately 1,000 mm, enabling a comfortable picking height of up to 2.6 meters.
XControl Steering: A specialized steering wheel designed to reduce vibrations and shocks, allowing for one-handed operation while the driver remains in a comfortable sideways stance.
Friction Force Technology: This system automatically adjusts the pressure of the drive wheel based on the load weight, providing better traction and stability during acceleration and braking.

Safety Features:

Floor-wide Operator Presence Sensor: Eliminates the need for a “dead man’s switch” pedal, allowing the operator to move freely on the platform.
Automatic Speed Reduction: Sensors detect when the truck is cornering and reduce speed to prevent tipping.
Low Step-In: An ultra-low step height (approx. 123 mm) minimizes fatigue for workers who frequently mount and dismount the machine.

Operational Capabilities

Travel Speed: Typically ranges from 9 km/h to 12 km/h depending on the specific battery and motor configuration.
Drive System: AC motor technology for smooth acceleration and reduced maintenance requirements.
Battery Options: Compatible with standard lead-acid batteries (often 24V / 400Ah–600Ah) or modern Lithium-ion configurations for multi-shift operations.
