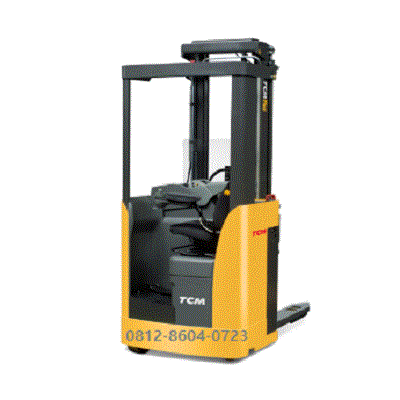

TCM Power Stacker SSO200 | 2 ton

Description

TCM Power Stacker SSO200 | 2 ton

The TCM SSO200 (also known as the SSO20-N2) is a heavy-duty, sit-on electric power stacker designed for high-intensity warehouse operations.
It is specifically engineered for narrow aisles and long-distance internal transport where operator comfort and high lift capacity are priorities.

Below are the key technical specifications for the 2-ton model:

Core Performance

Specification Details.
Load Capacity 2,000 kg (2.0 Ton).
Load Center 600 mm.
Maximum Lift Height Up to 6,750 mm – 7,000 mm. (depending on mast).
Travel Speed 9.0 km/h (both loaded and unloaded).
Power Source Electric (24V System).
Aisle Width (AST) Approx. 2,500 mm (for 1000×1200 pallet).

Dimensions & Chassis

Truck Width: 1,010 mm.
Turning Radius: 1,866 mm (standard) to 1,920 mm (initial lift version).
Chassis Design: Compact “sit-on” configuration, allowing the operator to stay protected within the truck profile.
Ground Clearance: High floor clearance to prevent contact with ramps or uneven floors.

Key Features

Ergonomics: Features a fully adjustable seat, midi-steering wheel, and an ergonomic armrest with integrated controls to reduce operator fatigue during long shifts.
Advanced Control: Equipped with an AC drive motor for high torque and low maintenance (no carbon brushes).
Stability: Features “Cornering Control” which automatically slows the truck during turns based on the steering angle.
Battery Options: Compatible with traditional Lead-Acid or modern Lithium-ion (Li-ion) batteries for opportunity charging and 24/7 operations.
Visibility: The overhead guard is designed with slim pillars and visibility holes to eliminate blind spots when stacking at height.

Available Variations

SSO20-N2: Standard sit-on stacker.
SSO20I-N2: Includes Initial Lift (load legs can be raised) for better performance on ramps and the ability to handle two pallets at once (double stacking).
SSO20S-N2: Straddle version for handling closed-bottom pallets.
