Toyota Forklift 7300-R40TT | 1.8 ton

Description

Toyota Forklift 7300-R40TT | 1.8 ton

BELIALAT.COM support unit, parts, service, rental, maintenance contract, overhaul, reconditioned Toyota Forklift 7300-R40TT | 1.8 ton

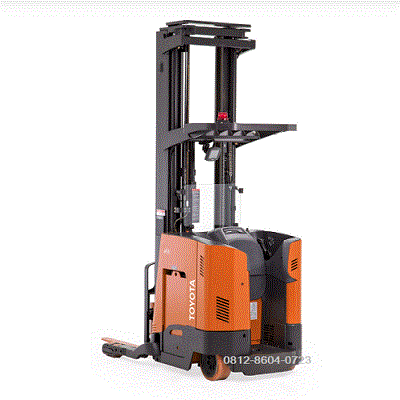

The Toyota Forklift 7300-R40TT | 1.8 ton (often branded under the 7000 series or the Raymond 7300 line through the Toyota-Raymond partnership) is a high-performance electric reach truck designed for narrow-aisle warehouse applications.
Below are the key specifications for the 1.8-ton (4,000 lbs) configuration:

General Specifications Toyota Forklift 7300-R40TT | 1.8 ton

Model: 7300-R40TT (7000 Series).
Load Capacity: 1,814 kg (4,000 lbs / ~1.8 tons).
Load Center: 600 mm (24 in).
Power Type: Electric (Lead-acid or Lithium-ion options).
Voltage: 36V.
Operator Position: Stand-up Rider (Universal or Dockstance options).

Performance Data

Max Travel Speed (No Load): 12.1 km/h (approx. 7.5 mph).
Max Travel Speed (Full Load): 11.2 km/h (approx. 7.0 mph).
Lift Speed (Full Load): Approx. 0.33 m/s (65-70 fpm).
Lowering Speed (Full Load): Approx. 0.45 m/s (90 fpm).
Gradeability: Up to 14% (standard 2-inch underclearance).

Mast & Dimensions

Max Lift Height: Typically ranges up to 7.6 meters (300 in), though higher configurations are available.
Free Lift: 1,930 mm (76 in).
Mast Type: 3-stage Wide-view (FSV).
Head Length (to fork face): Approx. 1,430 mm to 1,506 mm (depending on battery compartment size).
Overall Width: 1,080 mm to 1,257 mm (42.5 in to 49.5 in).
Wheelbase: 1,450 mm to 1,552 mm.

Key Features

ACR System: Utilizing AC technology for both traction and lift, providing smoother control and longer battery life.
Steered Idler Wheel: A unique suspension system that eliminates “caster snap” and provides better stability at high elevations.
Open View Mast: A patented 4-cylinder design that improves visibility of the baselegs and the load during stacking.
Regenerative Braking: Returns energy to the battery during deceleration and lowering to extend shift life.
Integrated Display: Often includes a multi-function touchscreen for diagnostics and performance settings.
Common Attachments/Options
Integral Sideshift: For easier pallet positioning in tight racks.
Cold Storage Conditioning: For operation in freezer environments.
Height-Tilt Indicator: Digital readout for precision at height.
Vantage Point Camera: Carriage-mounted camera to assist operators at maximum lift heights

Main Specification, Toyota Forklift 7300-R40TT | 1.8 ton

Model : 7300-R40TT
Load Capacity : 1800 kg
Load Center : 500 mm
Overall Width A : 1060 mm
Turning Radius (Outside) B : 1750 mm
Overhead Guard Height C : 2,025 [2,105] mm
Length to Fork Face : 2075 mm

The Mastery of True Potential

Mastery of any undertaking can only be achieved if there is true potential and unwavering dedication to excellence. To Toyota, the 8 Series is the proud culmination of 50 years in the pursuit of mastery in the development and manufacture of forklifts.

Outstanding Comfort and Visibility

The 8 Series provides the comfort and visibility for long hours of efficient operation.

Efficiency-Boosting Operability

The operator’s compartment is carefully designed to ensure maximum forklift control from minimum operator effort.

Top-Class Stability

Toyota’s System of Active Stability (SAS), Operator Presence Sensing (OPS) system and Travel and Load Handling Control provide innovative, high-tech stability to the 8 Series.

Environmental Friendliness

Low noise and exhaust emissions make the 8 Series environmentally friendly.

Built-in Reliability and Serviceability

Designed to be tough and easy to maintain.

True Potential Through Outstanding Comfort and Visibility

Comfort is a Toyota tradition. With the 8 Series, it starts from the time you enter. Grab the large assist grip, place your foot on the wide, low step and slide into the operator’s seat that provides comfort, support and retention.

Once you have been seated and wrapped your hands around the small- diameter steering wheel you will intuitively feel that everything you need for operating the forklift is within natural reach.

You will also instantly realize that you have a clear view of the forks and load. This comfort sets the stage for reaching the true potential of the forklift from Toyota.

Easy Entry and Exit

A large assist grip, A deep, wide step and a spacious opening team up for easy entry onto the forklift.

Comfort and Support ORS* Seat

The ORS seat can be adjusted 150 mm forward and backward to provide comfort and support to almost all sizes of operators. *ORS: Operator Restraint System.

Outstanding Visibility

The overhead guard, mast and instrument panel have been designed to provide excellent visibility of the fork tips at the most frequently used lift heights.

Wide Floor Space

The spacious floor area enables a more relaxed operating position that contributes to comfort.

True Potential Through Outstanding Operability

Toyota used the latest technology to reexamine forklift operation in its search for enhanced operability. Motion-capture technology monitored every aspect of operator movement looking for ways to make operation more efficient.

Based on these findings, well-thought-out design changes were combined to make the 8 Series ready to transform every action of the operator into smooth and efficient operation.

Operator-Friendly Steering Wheel

The small-diameter steering wheel teams up with the full hydraulic power steering system to provide excellent maneuverability. The steering column offers step-less adjustment to accommodate a wide range of operator preferences.

Bagian bagian componet forklift terdiri dari Mesin, Transmisi, roda depan, roda belakang, rem, hydraulic, steer, mast dll

Foot-Activated Parking Brake (Powershift models)

The operator simply depresses the parking brake pedal to set it without changing operating position. A conveniently located handle is used to release it.

Rear-Pillar Assist Grip / Swivel Seat

The seat swivels to the right to facilitate operation in reverse. The seat also swivels to the left to make it easier to enter and exit the forklift.

An optionally available rear-pillar assist grip with a horn button enhances comfort by offering easy horn operation while traveling in reverse
