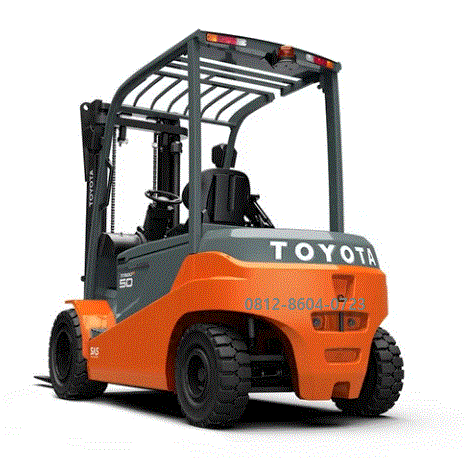

Toyota Forklift 8FBMT45 | 4.5 ton

Description

Toyota Forklift 8FBMT45 | 4.5 ton

BELIALAT.COM support unit, parts, service, rental, maintenance contract, overhaul, reconditioned Toyota Forklift 8FBMT45 | 4.5 ton

The Toyota 8FBMT45 is a heavy-duty 4-wheel electric counterbalance forklift within the Traigo 80 series. It is designed for high-intensity applications requiring precision and high load capacity.

Core Specifications

Load Capacity: 4,500 kg (4.5 tons).
Load Center: 500 mm.
Power Type: 80V Battery (Electric).
Operator Position: Rider seated.

Dimensions & Weight

Service Weight: Approx. 7,086 kg (including battery).
Overall Width: 1,345 mm.
Length to Fork Face: 2,947 mm.
Overall Length: 3,947 mm (with standard 1,000 mm forks).
Height of Overhead Guard: 2,360 mm.
Turning Radius (Outside): 2,558 mm.
Wheelbase: 2,030 mm

Performance Data

Travel Speed (Full/No Load): 18 / 18 km/h.
Lifting Speed (Full/No Load): 0.35 / 0.46 m/s.
Lowering Speed (Full/No Load): 0.55 / 0.46 m/s.
Max Gradeability (Full/No Load): 14% / 24%.
Drive Motor Rating: 25.2 kW.
Lift Motor Rating: 25.5 kW.

Mast & Forks

Standard Lift Height: 3,300 mm (can vary based on mast choice).
Mast Lowered Height: 2,500 mm (standard mast).
Standard Fork Dimensions: 50 x 150 x 1,000 mm.
Mast Tilt (Forward/Backward): 5° / 10°.

Key Features

Toyota SAS (System of Active Stability): Electronically monitors and controls forklift stability to reduce the risk of tip-overs.
AC Power System: Provides high energy efficiency and smoother control of travel and lifting functions.
Wet Disc Brakes: Low-maintenance braking system designed for durability in heavy-duty environments.
IPX4 Water Resistance: Allows for operation in both indoor and outdoor environments, even in light rain.
Operator Presence Sensing (OPS): Automatically stops all truck movement and hydraulic functions if the operator is not seated correctly

Main Specification, Toyota Forklift 8FBMT45 | 4.5 ton

Model : 8FBMT45
Load Capacity (kg) : 4500
Lift Height (mm) : 6550
Usage Intensity : High 5 Stage
Transport Distance : Medium-Long 4 Stage
Suitable Areas : Construction / Manufacturing / Outside adpated / Stores / Supermarkets / Warehouses
Operator Position : Seated
Travel Speed, no load (km/h) : 18
Free Lift (mm) : 1930
Power Type : Lead acid/Li-ion

The Mastery of True Potential

Mastery of any undertaking can only be achieved if there is true potential and unwavering dedication to excellence. To Toyota, the 8 Series is the proud culmination of 50 years in the pursuit of mastery in the development and manufacture of forklifts.

Outstanding Comfort and Visibility

The 8 Series provides the comfort and visibility for long hours of efficient operation.

Efficiency-Boosting Operability

The operator’s compartment is carefully designed to ensure maximum forklift control from minimum operator effort.

Top-Class Stability

Toyota’s System of Active Stability (SAS), Operator Presence Sensing (OPS) system and Travel and Load Handling Control provide innovative, high-tech stability to the 8 Series.

Environmental Friendliness

Low noise and exhaust emissions make the 8 Series environmentally friendly.

Built-in Reliability and Serviceability

Designed to be tough and easy to maintain.

True Potential Through Outstanding Comfort and Visibility

Comfort is a Toyota tradition. With the 8 Series, it starts from the time you enter. Grab the large assist grip, place your foot on the wide, low step and slide into the operator’s seat that provides comfort, support and retention.

Once you have been seated and wrapped your hands around the small- diameter steering wheel you will intuitively feel that everything you need for operating the forklift is within natural reach.

You will also instantly realize that you have a clear view of the forks and load. This comfort sets the stage for reaching the true potential of the forklift from Toyota.

Easy Entry and Exit

A large assist grip, A deep, wide step and a spacious opening team up for easy entry onto the forklift.

Comfort and Support ORS* Seat

The ORS seat can be adjusted 150 mm forward and backward to provide comfort and support to almost all sizes of operators. *ORS: Operator Restraint System.

Outstanding Visibility

The overhead guard, mast and instrument panel have been designed to provide excellent visibility of the fork tips at the most frequently used lift heights.

Wide Floor Space

The spacious floor area enables a more relaxed operating position that contributes to comfort.

True Potential Through Outstanding Operability

Toyota used the latest technology to reexamine forklift operation in its search for enhanced operability. Motion-capture technology monitored every aspect of operator movement looking for ways to make operation more efficient.

Based on these findings, well-thought-out design changes were combined to make the 8 Series ready to transform every action of the operator into smooth and efficient operation.

Operator-Friendly Steering Wheel

The small-diameter steering wheel teams up with the full hydraulic power steering system to provide excellent maneuverability. The steering column offers step-less adjustment to accommodate a wide range of operator preferences.

Bagian bagian componet forklift terdiri dari Mesin, Transmisi, roda depan, roda belakang, rem, hydraulic, steer, mast dll

Foot-Activated Parking Brake (Powershift models)

The operator simply depresses the parking brake pedal to set it without changing operating position. A conveniently located handle is used to release it.

Rear-Pillar Assist Grip / Swivel Seat

The seat swivels to the right to facilitate operation in reverse. The seat also swivels to the left to make it easier to enter and exit the forklift.

An optionally available rear-pillar assist grip with a horn button enhances comfort by offering easy horn operation while traveling in reverse.
