Toyota Forklift 9300-SL40 | 1.8 ton

Description

Toyota Forklift 9300-SL40 | 1.8 ton

BELIALAT.COM support unit, parts, service, rental, maintenance contract, overhaul, reconditioned Toyota Forklift 9300-SL40 | 1.8 ton

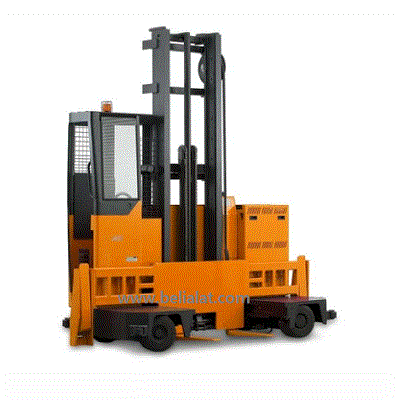

The Toyota 9300-SL40 is a specialized Sideloader Long Load Forklift designed for handling bulky materials in very narrow aisles.
Unlike a standard counterbalance forklift, it carries loads on its side to navigate tight spaces with long items like pipes or timber.
Below are the technical specifications for the 1.8-ton model:

Core Performance

Load Capacity: 1,814 kg (approx. 4,000 lbs / 1.8 tons).
Max Lift Height: 9,144 mm (9 meters / 30 feet).
Free Lift: 3,226 mm.
Travel Speed (No Load): 8.6 km/h.
Power Type: Electric (Lead Acid battery).
Operator Position: Standing.

Operational Features

Maneuverability: Features 4-way steering, allowing the unit to travel sideways, forwards, or backwards. This is critical for moving long loads (e.g., bar stock, tubing, or plywood) through narrow warehouse doors and aisles.
Application: Best suited for indoor warehouse environments with medium-to-high usage intensity.
Visibility: Equipped with Toyota’s clear-view mast design to provide unobstructed lines of sight when traveling with elevated or bulky loads.

Ergonomics & Controls

Steering: Load-sensing power steering with a compact steering wheel.
Hydraulics: Mini-lever hydraulic controls typically mounted for easy reach while standing.
Display: Integrated digital monitoring for battery levels, hour meter, and travel status.
This unit is a “Very Narrow Aisle” (VNA) truck, making it a distinct tool from the more common 8-Series engine-powered forklifts.

Specifications Toyota Forklift 9300-SL40 | 1.8 ton

Manufacturer : Toyota Very Narror Aisle (VNA)
Model : 9300-SL40
Operation Position : Seated
Load Capacity : 1814 kg
Lift Height : 9144 mm
Usage Intensity : Medium-High
Transport Distance : Medium
Suitable Areas : Warehouses
Operator Position : Standing
Travel Speed, no load : 8.7 km/h
Free Lift : 3226 mm
Power Type : Lead acid

The Mastery of True Potential

Mastery of any undertaking can only be achieved if there is true potential and unwavering dedication to excellence. To Toyota, the 8 Series is the proud culmination of 50 years in the pursuit of mastery in the development and manufacture of forklifts.

Outstanding Comfort and Visibility

The 8 Series provides the comfort and visibility for long hours of efficient operation.

Efficiency-Boosting Operability

The operator’s compartment is carefully designed to ensure maximum forklift control from minimum operator effort.

Top-Class Stability

Toyota’s System of Active Stability (SAS), Operator Presence Sensing (OPS) system and Travel and Load Handling Control provide innovative, high-tech stability to the 8 Series.

Environmental Friendliness

Low noise and exhaust emissions make the 8 Series environmentally friendly.

Built-in Reliability and Serviceability

Designed to be tough and easy to maintain.

True Potential Through Outstanding Comfort and Visibility

Comfort is a Toyota tradition. With the 8 Series, it starts from the time you enter.

Grab the large assist grip, place your foot on the wide, low step and slide into the operator’s seat that provides comfort, support and retention.

Once you have been seated and wrapped your hands around the small- diameter steering wheel you will intuitively feel that everything you need for operating the forklift is within natural reach.

You will also instantly realize that you have a clear view of the forks and load. This comfort sets the stage for reaching the true potential of the forklift from Toyota.

Easy Entry and Exit

A large assist grip, A deep, wide step and a spacious opening team up for easy entry onto the forklift.

Comfort and Support ORS* Seat

The ORS seat can be adjusted 150 mm forward and backward to provide comfort and support to almost all sizes of operators. *ORS: Operator Restraint System.

Outstanding Visibility

The overhead guard, before mast and instrument panel have been designed to provide excellent visibility of the fork tips at the most frequently used lift heights.

Wide Floor Space

The spacious floor area enables a more relaxed operating position that contributes to comfort.

True Potential Through Outstanding Operability

Toyota used the latest technology to reexamine forklift operation in its search for enhanced operability. Motion-capture technology monitored every aspect of operator movement looking for ways to make operation more efficient.

Based on these findings, well-thought-out design changes were combined to make the 8 Series ready to transform every action of the operator into smooth and efficient operation.

Operator-Friendly Steering Wheel

The small-diameter steering wheel teams up with the full hydraulic power steering system to provide excellent maneuverability. The steering column offers step-less adjustment to accommodate a wide range of operator preferences.

Bagian bagian componet forklift terdiri dari Mesin, Transmisi, roda depan, roda belakang, rem, hydraulic, steer, mast dll

Foot-Activated Parking Brake (Powershift models)

The operator simply depresses the parking brake pedal to set it without changing operating position. A conveniently located handle is used to release it.

Rear-Pillar Assist Grip / Swivel Seat

The seat swivels to the right to facilitate operation in reverse.
The seat also swivels to the left to make it easier to enter and exit the forklift.

An optionally available rear-pillar assist grip with a horn button enhances
comfort by offering easy horn operation while traveling in reverse
