Toyota Forklift 9400-SL60 | 2.7 ton

Description

Toyota Forklift 9400-SL60 | 2.7 ton

BELIALAT.COM support unit, parts, service, rental, maintenance contract, overhaul, reconditioned Toyota Forklift 9400-SL60 | 2.7 ton

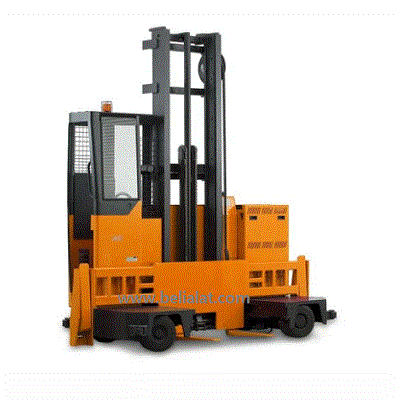

The Toyota 9400-SL60 is a heavy-duty electric sideloader forklift designed specifically for handling long, bulky loads in very narrow aisles.
It belongs to the 9400-series, which is optimized for materials like steel, tubing, and timber.
Below are the technical specifications for the 9400-SL60 (2.7-ton model):

Core Performance & Capacity

Model: 9400-SL60.
Load Capacity: 2,722 kg (approx. 6,000 lbs).
Load Center: Typically 610 mm (24 in) — equivalent to half the load bed length.
Max Lift Height: Up to 9,322 mm (approx. 367 in / 30.5 ft).
Travel Speed (Unloaded): 8.7 km/h (5.4 mph).
Lift Speed (Full Load): 0.28 m/s (55 fpm).
Lowering Speed: 0.30 m/s (60 fpm).

Dimensions & Maneuverability

Turning Radius: 3,048 mm to 3,429 mm (120–135 in), depending on the specific load bed configuration.
Truck Width: Approx. 2,953 mm (116.25 in).
Overall Length: Varies by load bed; typically between 1,273 mm and 1,883 mm (50–74 in).
Load Bed Length Options: Available in 914 mm (36 in), 1,067 mm (42 in), and 1,219 mm (48 in).
Mast Travel: 762 mm to 1,372 mm (30–54 in).
Free Lift: 3,023 mm (approx. 119 in).

Technical Systems

Power Type: 48V Electric (Lead-acid).
Drive System: Dual AC Drive motors for enhanced traction and steering.
Operator Position: Stand-up compartment, designed for high visibility and frequent on/off tasks.
Steering: Features “Crab Steer” capability (20° Left/Right) for precise positioning in tight aisles.
Tires: Polyurethane drive and steer tires, typically 15″ x 8″.

Key Operational Features

Narrow Aisle Efficiency: Designed for “Very Narrow Aisle” (VNA) environments where traditional forklifts cannot maneuver.
Load Stability: Built with a rigid mast to minimize sway at high lift elevations.
Customization: Often configured with different carriage types and fork lengths to match specific inventory like lumber or PVC piping.

Specifications Toyota Toyota Forklift 9400-SL60 | 2.7 ton

Manufacturer : Toyota Very Narror Aisle (VNA)
Model : 9400-SL60
Operation Position : Seated
Load Capacity : 2724 kg
Lift Height : 7366 mm
Usage Intensity : Medium-High
Transport Distance : Medium
Suitable Areas : Warehouses
Operator Position : Standing
Travel Speed, no load : 8.7 km/h
Free Lift : 3226 mm
Power Type : Lead acid

The Mastery of True Potential

Mastery of any undertaking can only be achieved if there is true potential and unwavering dedication to excellence. To Toyota, the 8 Series is the proud culmination of 50 years in the pursuit of mastery in the development and manufacture of forklifts.

Outstanding Comfort and Visibility

The 8 Series provides the comfort and visibility for long hours of efficient operation.

Efficiency-Boosting Operability

The operator’s compartment is carefully designed to ensure maximum forklift control from minimum operator effort.

Top-Class Stability

Toyota’s System of Active Stability (SAS), Operator Presence Sensing (OPS) system and Travel and Load Handling Control provide innovative, high-tech stability to the 8 Series.

Environmental Friendliness

Low noise and exhaust emissions make the 8 Series environmentally friendly.

Built-in Reliability and Serviceability

Designed to be tough and easy to maintain.

True Potential Through Outstanding Comfort and Visibility

Comfort is a Toyota tradition. With the 8 Series, it starts from the time you enter.

Grab the large assist grip, place your foot on the wide, low step and slide into the operator’s seat that provides comfort, support and retention.

Once you have been seated and wrapped your hands around the small- diameter steering wheel you will intuitively feel that everything you need for operating the forklift is within natural reach.

You will also instantly realize that you have a clear view of the forks and load. This comfort sets the stage for reaching the true potential of the forklift from Toyota.

Easy Entry and Exit

A large assist grip, A deep, wide step and a spacious opening team up for easy entry onto the forklift.

Comfort and Support ORS* Seat

The ORS seat can be adjusted 150 mm forward and backward to provide comfort and support to almost all sizes of operators. *ORS: Operator Restraint System.

Outstanding Visibility

The overhead guard, before mast and instrument panel have been designed to provide excellent visibility of the fork tips at the most frequently used lift heights.

Wide Floor Space

The spacious floor area enables a more relaxed operating position that contributes to comfort.

True Potential Through Outstanding Operability

Toyota used the latest technology to reexamine forklift operation in its search for enhanced operability. Motion-capture technology monitored every aspect of operator movement looking for ways to make operation more efficient.

Based on these findings, well-thought-out design changes were combined to make the 8 Series ready to transform every action of the operator into smooth and efficient operation.

Operator-Friendly Steering Wheel

The small-diameter steering wheel teams up with the full hydraulic power steering system to provide excellent maneuverability. The steering column offers step-less adjustment to accommodate a wide range of operator preferences.

Bagian bagian componet forklift terdiri dari Mesin, Transmisi, roda depan, roda belakang, rem, hydraulic, steer, mast dll

Foot-Activated Parking Brake (Powershift models)

The operator simply depresses the parking brake pedal to set it without changing operating position. A conveniently located handle is used to release it.

Rear-Pillar Assist Grip / Swivel Seat

The seat swivels to the right to facilitate operation in reverse.
The seat also swivels to the left to make it easier to enter and exit the forklift.

An optionally available rear-pillar assist grip with a horn button enhances
comfort by offering easy horn operation while traveling in reverse
