Toyota Forklift C3E100RII | 1 ton

Description

Toyota Forklift C3E100RII | 1 ton

BELIALAT.COM support unit, parts, service, rental, maintenance contract, overhaul, reconditioned Toyota Forklift C3E100RII | 1 ton

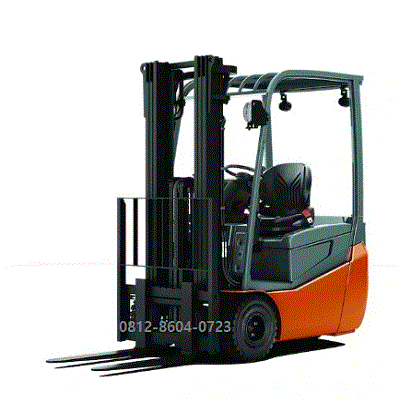

The Toyota C3E100RII (part of the BT Cargo E2-series) is an extremely compact 3-wheel electric counterbalance forklift designed for light to medium load handling in tight spaces.

Core Specifications

Model Identification: C3E100RII.
Load Capacity: 1,000 kg (1 Ton).
Load Center: 500 mm.
Operator Type: Rider Seated.
Drive Unit: 24V Electric (AC Drive).

Dimensions & Maneuverability

Turning Radius (Wa): 1,229 mm.
Overall Width (b1): 990 mm.
Length to Face of Forks (l2): 1,559 mm.
Overall Length (l1): 2,359 mm.
Overhead Guard Height (h6): 2,055 mm.
Wheelbase (y): 984 mm.
Aisle Width (Pallet 800×1200): 3,010 mm (lengthways).

Performance

Travel Speed (Full/No Load): 12.0 / 12.5 km/h.
Lift Speed (Full/No Load): 0.34 / 0.52 m/s.
Lowering Speed (Full/No Load): 0.59 / 0.50 m/s.
Gradeability (Full/No Load): 8% / 12%.
Service Brake: Hydraulic.

Mast & Lifting (Standard V-Mast)

Lift Height (h3): 3,270 mm (Standard, though options vary up to 7,000 mm).
Height, Mast Lowered (h1): 2,140 mm.
Height, Mast Extended (h4): 3,820 mm.
Free Lift (h2): 80 mm (Standard).
Tilt Range: 5° Forward / 6° Backward.

Electrical System

Drive Motor Rating: 6 kW.
Lift Motor Rating: 11 kW.
Battery Voltage/Capacity: 24V / 420–500 Ah.
Battery Weight: ~372 kg.
Controller Type: Inverter MOSFET.

Key Features

System of Active Stability (SAS): Provides electronic control of mast and steering for increased safety.
Operator Presence Sensing (OPS): Disables travel and hydraulic functions if the operator leaves the seat.
Compact 3-Wheel Design: Features a single rear wheel for a near-zero internal turning radius, ideal for narrow-aisle warehouse operations.

Main Specification, Toyota Forklift C3E100RII | 1 ton

Model : C3E100RII
Load Capacity : 1000 kg
Load Center : 500 mm
Overall Width A : 1060 mm
Turning Radius (Outside) B : 1750 mm
Overhead Guard Height C : 2,025 [2,105] mm
Length to Fork Face : 2075 mm
