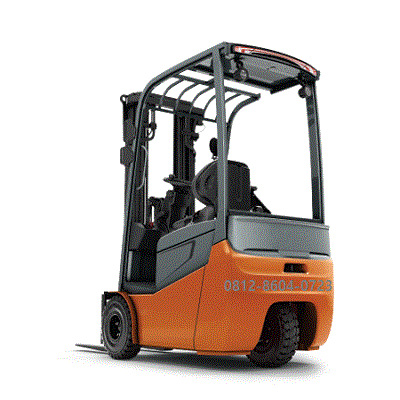

Toyota Forklift C3E130RII | 1.3 ton

Description

Toyota Forklift C3E130RII | 1.3 ton

BELIALAT.COM support unit, parts, service, rental, maintenance contract, overhaul, reconditioned Toyota Forklift C3E130RII | 1.3 ton

The Toyota C3E130RII is a 3-wheel electric counterbalance forklift within the BT Cargo/Toyota 8-Series range, specifically designed for agility in confined warehouse spaces.

Core Specifications

Model: C3E130RII.
Load Capacity: 1,300 kg (1.3 ton).
Load Center: 500 mm.
Power Source: 24V Electric.
Operator Type: Rider Seated.

Dimensions & Weight

Service Weight: Approx. 2,774 kg (including battery).
Overall Width: 990 mm.
Length to Face of Forks: 1,721 mm.
Wheelbase: 1,146 mm.
Turning Radius: 1,391 mm.
Aisle Width (1000×1200 pallet crossways): 3,050 mm.
Overhead Guard Height: 2,055 mm.

Performance Data

Travel Speed (Full Load/No Load): 12.0 / 12.5 km/h.
Lift Speed (Full Load/No Load): 0.32 / 0.52 m/s.
Lowering Speed (Full Load/No Load): 0.59 / 0.50 m/s.
Max Gradeability (Full Load/No Load): 16% / 25%.
Mast & Hydraulics (Standard V-Mast).
Standard Lift Height: 3,305 mm.
Height, Mast Lowered: 2,140 mm.
Height, Mast Extended: 3,820 mm (without load backrest).
Free Lift: 80 mm.
Tilt Range: 5° Forward / 6° Backward.

Electrical System

Drive Motor Rating: 6.0 kW (AC).
Lift Motor Rating: 11.0 kW.
Battery Voltage/Capacity: 24V / 735–875 Ah.
Controller Type: Inverter MOSFET.

Key Features

Compact 3-Wheel Design: Features a single rear steer wheel for a near-zero internal turning radius.
AC Drive System: Provides smooth acceleration and regenerative braking to extend battery life.
Safety Systems: Typically includes the Operator Presence Sensing System (OPSS) which locks hydraulic and travel functions if the operator leaves the seat.

Main Specification, Toyota Forklift C3E130RII | 1.3 ton

Model : C3E130RII
Load Capacity : 1300 kg
Load Center : 500 mm
Overall Width A : 1060 mm
Turning Radius (Outside) B : 1750 mm
Overhead Guard Height C : 2,025 [2,105] mm
Length to Fork Face : 2075 mm
