Toyota Forklift VCE150A | 1.5 ton

Description

Toyota Forklift VCE150A | 1.5 ton

BELIALAT.COM support unit, parts, service, rental, maintenance contract, overhaul, reconditioned Toyota Forklift VCE150A | 1.5 ton

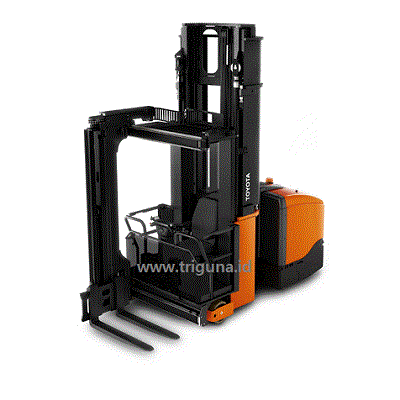

The Toyota BT Vector VCE150A is an electric “Man-Up” Very Narrow Aisle (VNA) combi truck designed for high-density warehouse operations, pallet handling, and order picking.

Core Performance & Capacities Toyota Forklift VCE150A | 1.5 ton

Rated Load Capacity: 1,500 kg (1.5 ton).
Load Center: 600 mm.
Maximum Lift Height: Up to 16,800 mm (16.8 meters).
Travel Speed: 10.0 km/h (with load) / 12.0 km/h (without load).
Lift Speed: 0.40 m/s (with load) / 0.45 m/s (without load).
Lowering Speed: 0.40 m/s (with/without load).
Physical Dimensions (Standard Configuration).
Overall Length (l1): 3,846 mm.
Length to Face of Forks (l2): 3,616 mm.
Chassis Width (b1): 1,270 mm.
Turning Radius (Wa): 1,698 mm.
Wheelbase (y): 1,655 mm.
Ground Clearance (m1): 60 mm (under mast, with load).
Overhead Guard Height (h6): 2,544 mm.
Step-in Height (h7): 412 mm.

Powertrain & Electrical

Drive System: Variable AC control.
Battery Voltage/Capacity: 48V / 930–1240 Ah.
Drive Motor Rating: 2 x 5.5 kW (Twin drive units).
Lift Motor Rating: 14.5 kW.
Service Weight: Approx. 6,920 kg (without battery).
Battery Weight: Approx. 1,790 kg.

Key Technical Features

Articulated Steering: A unique chassis design that allows for faster aisle changes and reduces the space required for aisle-to-aisle transfer (often up to 1 meter less than non-articulated trucks).
Advanced Lifting System (ALS): An energy-regeneration system that captures energy during lowering to be used for the next lift, significantly extending battery life.
BT Optipace: Automatically adjusts travel and handling speeds based on the current lift height and load weight for optimized safety and productivity.
Guidance Options: Compatible with wire or rail guidance systems for high-speed operation in narrow aisles.
Braking: Features an electric service brake and an electro-mechanical automatic parking brake.

Specifications Toyota Forklift VCE150A | 1.5 ton

Manufacturer : Toyota Very Narrow Aisle (VNA)
Model : Toyota Forklift VCE150A
Drive : Electric

Operator type : Seated
Load capacity/rated load Q : 1250 kg
Load centre C : 600 mm

Wheelbase y : 1655 mm
Service weight without battery : 6150* kg
Axle load, with load, drive/support arm wheel : 3825/4725 kg
Axle load, without load, drive/support arm wheel : 4410/3135 kg
