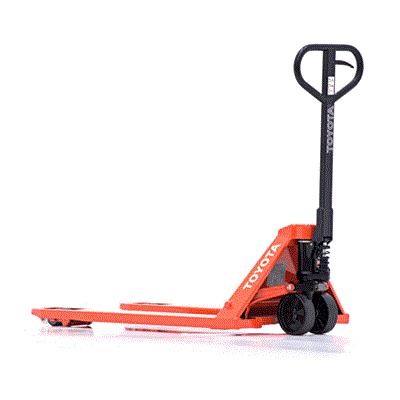

Toyota Hand Pallet LHM300 | 3 ton

Description

Toyota Hand Pallet LHM300 | 3 ton

BELIALAT.COM support unit, parts, service, rental, maintenance contract, overhaul, reconditioned Toyota Hand Pallet LHM300 | 3 ton

Toyota Hand Pallet LHM300 | 3 ton is a heavy-duty hand pallet truck designed for moving exceptionally large loads. Below are the technical specifications for this 3-ton unit:

Core Specifications Toyota Hand Pallet LHM300 | 3 ton

Model: Toyota BT Lifter LHM300.
Load Capacity: 3,000 kg (3.0 Ton).
Load Center: 600 mm.
Operator Type: Manual / Hand-operated.
Service Weight: Approx. 105 kg

Dimensions

Overall Length (l1): 1,510 mm.
Overall Width (b1/b2): 520 / 685 mm (standard configurations).
Fork Dimensions (s/e/l): 45 mm x 175 mm x 1,150 mm (standard).
Width Over Forks (b5): 520 / 685 mm.
Wheelbase (y): 1,185 mm.
Ground Clearance (m2): 40 mm

Lift & Performance

Lift Height (h23): 200 mm.
Lowered Height (h13): 85 mm.
Turning Radius (Wa): 1,385 mm.
Aisle Width (Pallet 800×1200 lengthways): 1,740 mm.
Aisle Width (Pallet 1000×1200 crossways): 1,540 mm

Wheels & Chassis

Steering Wheel Size: 175 mm x 60 mm.
Fork Wheel Size: 85 mm x 75 mm.
Wheel Material Options: Nylon (best for heavy loads/hard floors), Polyurethane, or Steel.
Wheel Configuration: Typically features bogie (double) fork wheels to handle the 3-ton weight capacity.

Key Features

BT Lowering Control: A stainless steel valve that allows for smooth, controlled lowering of heavy loads.
Ergonomic Handle: Angled, high-strength polymer grip for operator comfort and protection.
Durability: Robust, robot-welded chassis with up to 12 greasing points for a long service life.
Heavy-Duty Thrust Bearing: Standard inclusion for easier steering when the unit is fully laden.
