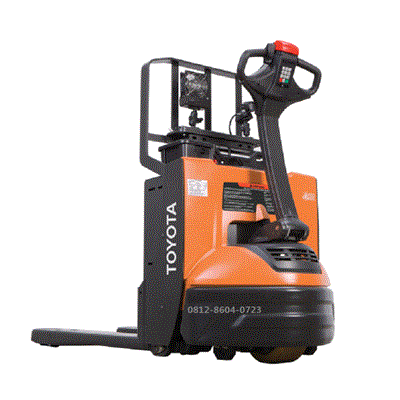

Toyota Pallet Mover 8210-F45L | 2 ton

Description

Toyota Pallet Mover 8210-F45L | 2 ton

BELIALAT.COM support unit, parts, service, rental, maintenance contract, overhaul, reconditioned Toyota Pallet Mover 8210-F45L | 2 ton

Main Specification, Toyota Pallet Mover 8210-F45L | 2 ton

The Toyota 8210-F45L (often part of the 8-Series Electric Walkie Pallet Jack lineup) is a powerhouse for retail, grocery, and warehouse environments where space is tight but the load is heavy.

Here are the key technical specifications for this 2-ton (4,500 lbs) capacity unit:

Core Performance Specs

Model 8210-F45L.
Load Capacity 2,000 kg (4,500 lbs).
Power Type 24V Electric.
Drive Control AC Drive Motor.
Max Speed (Loaded) ~5.5 km/h (3.4 mph).
Max Speed (Unloaded) ~6.0 km/h (3.7 mph).

Dimensions & Maneuverability

The “L” in the model name often refers to specific fork lengths or configurations suited for standard pallet handling.
Turning Radius: Approximately 1,320 mm – 1,475 mm (depending on fork length).

This model is specifically designed to click-to-creep, allowing it to operate with the handle in a near-vertical position.

Fork Width: Standard 685 mm (27 in) or narrow 560 mm (22 in) options.
Fork Length: Typically 1,150 mm (45 in) or 1,220 mm (48 in).
Service Weight: Roughly 350 kg – 420 kg (including battery).

Key Technical Features

AC Drive System: Unlike older DC motors, the AC system provides smoother acceleration, better torque, and lower maintenance (no carbon brushes to replace).

Regenerative Braking: When you slow down or change direction, the motor feeds energy back into the battery, extending your shift life.
Electronic Brake Release: Allows the unit to be moved manually even if the battery is dead—a lifesaver in cramped aisles.

Why this Model?

The 8210 series is particularly famous for its “Click-to-Creep” function. By double-clicking the control handle, you can move the unit at a slow pace while the handle is upright. This is the “cheat code” for navigating inside the back of a delivery truck or a crowded stockroom.

Note: Always check the specific battery amp-hour (Ah) rating on your unit, as these can be fitted with different battery sizes which will affect the total runtime and charging requirements.
>Would you like me to find a digital copy of the operator’s manual or compare these specs against a similar model like the Raymond 8210?

Identification

Manufacturer : Toyota
Model : 8210-F45L.

Drive : Electric
Operator type : Stand on.

Load capacity/rated load Q : 2000 kg
Rated drawbar pull F : 1000 N
Wheelbase y : 1319 mm
