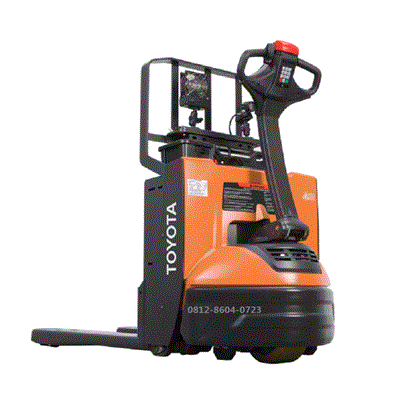

Toyota Pallet Mover 8250-F50 | 2.2 ton

Description

Toyota Pallet Mover 8250-F50 | 2.2 ton

BELIALAT.COM support unit, parts, service, rental, maintenance contract, overhaul, reconditioned Toyota Pallet Mover 8250-F50 | 2.2 ton

Main Specification, Toyota Pallet Mover 8250-F50 | 2.2 ton

The Toyota 8250-F50 is a heavy-duty, lithium-ion powered electric walkie pallet mover.
Below are the key specifications for this unit:

Core Performance & Capacity

Model: 8250-F50 (Li-ion Series).
Load Capacity: 2,267 kg (approx. 5,000 lbs).
Power Type: 24V Lithium-ion (Electric).
Operator Type: Walkie (Pedestrian).
Travel Speed (Unloaded): 6.2 km/h.
Travel Speed (Loaded): Approx. 5.8 km/h.

Dimensions & Maneuverability

Fork Height (Lowered): 83 mm (approx. 3.25 in).
Maximum Lift Height: 231 mm (approx. 9.1 in).
Head Length: Reduced by approx. 5 cm compared to standard models for a tighter turning radius.
Battery Compartment: 147 mm (5.8 in) — significantly slimmer than lead-acid versions.
Turning Radius: Approx. 1,500 mm (varies slightly by fork length).

Battery & Charging

Technology: Integrated Lithium-ion (Maintenance-free).
Runtime: Approximately 3–4 consecutive hours of active run-time.
Charging: Supports “Opportunity Charging” (can be plugged in during breaks without damaging battery life).
Maintenance: No watering, cleaning, or equalizing required.

Key Features

Click-to-Creep: Allows the truck to be operated with the handle in the nearly vertical position for maneuvering in extremely tight spots (e.g., inside a delivery truck).
IP65 Rating: The electrical system is sealed against dust and water, making it suitable for wash-downs and refrigerated environments.
Static Torque Control: Maintains consistent speed and power when climbing dock boards or over floor transitions.
Regenerative Braking: Feeds energy back into the battery during deceleration.
Would you like me to find a local dealer or compare this model’s performance against the standard lead-acid 8HBW23 model?

Identification

Manufacturer : Toyota
Model : 8250-F50
Drive : Electric
Operator type : Stand on
Load Capacity (kg) : 2267
Lift Height (mm) : 152
Usage Intensity : Medium-High
Transport Distance : Medium-Long
Suitable Areas : Warehouses
Operator Position: Standing
Travel Speed, no load (km/h) :14.4
Free Lift (mm) : N/A
Power Type : Lead acid
