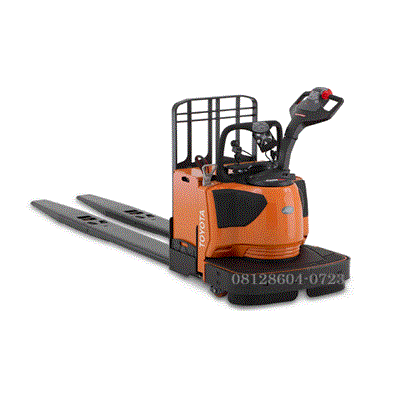

Toyota Pallet Mover 8410-FRE60L | 2.7 ton

Description

Toyota Pallet Mover 8410-FRE60L | 2.7 ton

BELIALAT.COM support unit, parts, service, rental, maintenance contract, overhaul, reconditioned Toyota Pallet Mover 8410-FRE60L | 2.7 ton

The Toyota (Raymond) 8410-FRE60L is a high-performance electric end-rider pallet truck, often referred to as a “Walkie Rider.” The “60” in the model name signifies its 6,000 lb capacity, which is approximately 2.7 metric tons.

Core Specifications

Model: 8410-FRE60L.
Load Capacity: 6,000 lbs (2,722 kg / 2.7 Tons).
Power Source: 24V Battery (Lead-Acid or Lithium-Ion compatible).
Drive Motor: AC Drive Motor with ACR System (Alternating Current Response).
Travel Speed (Loaded): 6.5 mph (10.5 km/h).
Travel Speed (Unloaded): 9.0 mph (14.5 km/h).
Lift Height: Up to 9.25 inches (approx. 235 mm).
Operator Type: Stand-up End Rider.

Physical Dimensions & Weights

Truck Weight (without battery): Approximately 1,175 lbs to 1,440 lbs (533 kg to 653 kg) depending on fork configuration.
Standard Fork Lengths: Available from 32″ to 144″ (813 mm to 3,658 mm).
Turning Radius (Forks Raised): Varies by fork length; for standard 48″ forks, it is approximately 77.5 inches (1,969 mm).
Operator Platform Height: 9.6 inches (244 mm).
Overall Width: 36 inches (914 mm).

Technical Features

ACR System: Provides quicker acceleration, smoother direction changes, and maintains performance even as the battery discharges.
Steering: Features “PowerSteer” which reduces steering effort by up to 90% and includes speed-sensitive assistance.
Controls: Ergonomic handle angled at 12 degrees for a natural hand position; includes programmable performance settings for different operator skill levels.
Durability: Ductile iron undercarriage, 2-inch diameter solid steel pull rods (stronger than standard push rods), and a reinforced battery box.
Braking: Electronic regenerative braking that returns energy to the battery when slowing down.

Battery Requirements

Voltage: 24 Volt.
Connector Type: SB-175 (Gray).
Max Ampere Rating: 750 Amps.
Battery Compartment Width: 13.4 inches (340 mm).
This unit is primarily used for high-volume dock work, horizontal transport over long distances, and low-level order picking due to its high travel speed and ergonomic stand-on platform.

Identification Toyota Pallet Mover 8410-FRE60L | 2.7 ton
Manufacturer : Toyota
Model : 8410-FRE60L
Drive : Electric
Operator type : Stand on
Load capacity/rated load Q : 2700 kg
Rated drawbar pull F : 1000 N
Wheelbase y : 1319 mm
