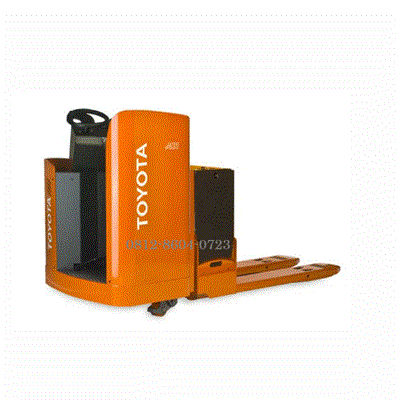

Toyota Pallet Mover 8910-F80 | 3.6 ton

Description

Toyota Pallet Mover 8910-F80 | 3.6 ton

BELIALAT.COM support unit, parts, service, rental, maintenance contract, overhaul, reconditioned Toyota Pallet Mover 8910-F80 | 3.6 ton

The Toyota 8910-F80 is an electric end-rider pallet jack designed for high-throughput applications and long-distance horizontal transport within warehouses and distribution centers. The “F80” designation specifically denotes its 8,000 lb (approximately 3.6 ton) load capacity.

Core Specifications Toyota Pallet Mover 8910-F80 | 3.6 ton

Model Number: 8910-F80.
Load Capacity: 8,000 lbs (3,629 kg).
Voltage: 24-Volt (compatible with Lead-Acid or Lithium-Ion power solutions).
Travel Speed (Loaded): 6.2 mph (10 km/h).
Travel Speed (Unloaded): 9.0 mph (14.5 km/h).
Lift Height: Up to 9.25 inches (235 mm).
Lowered Fork Height: 3.25 inches (83 mm).
Step Height: 10 inches (254 mm) — designed for easy entry/exit for operators during picking.

Dimensions & Maneuverability

Overall Width: 36 inches (914 mm) to 40 inches depending on configuration.
Aisle Width (Right Angle Stack): Approximately 106 inches to 137 inches (depending on fork length).
Fork Options: Available in single, double, or triple fork lengths to handle multiple pallets simultaneously.

Key Performance Features

AC Drive System: Uses a brushless AC traction motor for smoother acceleration, higher torque, and reduced maintenance compared to DC motors.
Regenerative Braking: Captures energy during braking to extend battery shift cycles and provides controlled deceleration.
Electric Power Steering: Standard low-effort steering reduces operator fatigue during long shifts.
Poly Torsion Block Casters: Acts as a built-in shock absorber to provide a smoother ride and improve stability when cornering with heavy loads.

Operator Ergonomics & Technology

Multi-Function Handle: Features intuitive controls for lift, lower, and travel that can be operated with either hand.
Lift and Go™ Technology: A programmable feature that limits travel speed until the forks are fully raised, protecting the undercarriage from damage over dock plates.
Operator Compartment Sensor System (OCSS): Uses sensors to ensure the operator is in a proper riding position before allowing full-speed travel.

Optional Configurations

Cold Storage Package: Includes specialized hydraulic oil, stainless steel linkage pins, and greaseable bearings for operation in environments as low as -20°F (-28°C).
Galvanized Chassis: Recommended for highly corrosive environments or wash-down applications.
Integrated Fork Scale: Allows operators to weigh loads as they are lifted, improving efficiency in shipping and receiving.

Specifications Toyota Pallet Mover 8910-F80 | 3.6 ton

Identification
Manufacturer : Toyota
Model : 8910-F80

Drive Electric
Operator type Stand on/pedestrian
Load capacity/rated load Q : 3600 kg
centre c mm 600

distance, centre of support arm wheel to face of fork, fork raised/lowered x mm 913/957
Wheelbase, fork raised/lowered y mm 1362/1406*
