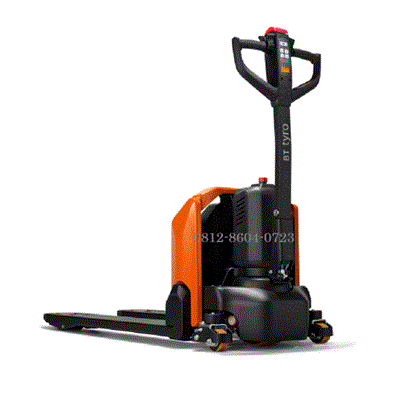

Toyota Pallet Mover LHE150 | 1.5 ton

Description

Toyota Pallet Mover LHE150 | 1.5 ton

BELIALAT.COM support unit, parts, service, rental, maintenance contract, overhaul, reconditioned Toyota Pallet Mover LHE150 | 1.5 ton

Main Specification, Toyota Pallet Mover LHE150 | 1.5 ton

The Toyota BT Tyro LHE150 is an entry-level electric pallet mover designed for light-duty warehouse tasks.
It effectively bridges the gap between a manual hand pallet jack and a full-scale industrial electric truck.
Below are the detailed technical specifications for the 1.5-ton unit:

Technical Specifications

Load Capacity 1,500 kg (1.5 ton).
Load Center 600 mm.
Service Weight Approx. 123 kg – 128 kg (including battery).
Travel Speed 4.6 km/h (Laden) / 4.8 km/h (Unladen).
Gradeability 4% (Laden) / 16% (Unladen).
Braking System Electromagnetic.

Battery & Power

Battery Type: Lithium-ion (Li-ion) – Maintenance-free.
Voltage/Capacity: 24V / 36Ah (standard) or 40Ah (optional).
Charging: External or integrated charger; supports “opportunity charging” (charging during breaks).
Battery Weight: Approx. 5 kg – 7 kg (easily removable).

Dimensions & Maneuverability

Overall Length: 1,530 mm – 1,600 mm (varies by fork length).
Overall Width: 540 mm (standard) or 685 mm (wide version).
Fork Dimensions: 1,150 mm (Length) x 160 mm (Width).
Turning Radius: 1,330 mm – 1,400 mm.
Lift Height: 115 mm (Max lift) / 80 mm (Lowered height).
Aisle Width: Approx. 2,000 mm (for 800×1200 pallets).

Key Features

Compact Design: Similar footprint to a manual pallet jack, making it ideal for tight spaces and delivery trucks.
Safety: Includes a PIN code panel for access control, an emergency stop button, and automatic speed reduction when cornering.
Ergonomics: Tiller arm designed for use in the vertical position (Creep Speed mode) to navigate extremely narrow aisles.
Display: LED screen showing battery discharge status and error codes.
Would you like me to compare this model with the heavier-duty Toyota Levio series or find a local dealer for pricing?

Identification

Manufacturer : Toyota
Model : LHE150
Drive : Electric
Operator type : Stand on
Load Capacity (kg) : 1500
Lift Height (mm) : 152
Usage Intensity : Medium-High
Transport Distance : Medium-Long
Suitable Areas : Warehouses
Operator Position: Standing
Travel Speed, no load (km/h) :14.4
Free Lift (mm) : N/A
Power Type : Lead acid
