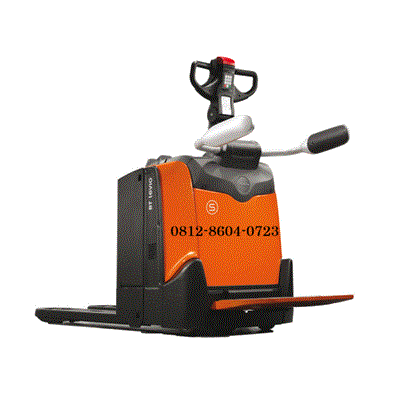

Toyota Pallet Mover LPE200B | 2 ton

Description

Toyota Pallet Mover LPE200B | 2 ton

BELIALAT.COM support unit, parts, service, rental, maintenance contract, overhaul, reconditioned Toyota Pallet Mover LPE200B | 2 ton

Main Specification, Toyota Pallet Mover LPE200B | 2 ton

The Toyota BT Levio LPE200 is a high-performance, electric pallet mover designed for medium to heavy-duty horizontal transport and dock operations.
It is best known for its “flip-down” operator platform, allowing it to be used as both a pedestrian-operated truck and a ride-on vehicle.
Below are the key technical specifications for the 2-ton model:

Core Performance

Load Capacity: 2000 kg (2 tons).
Load Center: 600 mm.
Top Speed (with/without load): 10.0 km/h (standard).
Lift Height: 205 mm.
Gradeability: 8% with load / 18% without load.

Dimensions & Weight

Service Weight (with battery): Approx. 826 kg (varies by battery choice).
Overall Width: 730 mm.
Overall Length (Platform Up/Down): 1,864 mm / 2,314 mm.
Fork Dimensions (Standard): 1,150 mm (length) x 180 mm (width).
Turning Radius (Platform Up/Down): 1,632 mm / 2,096 mm.

Battery & Power

Voltage: 24 V.
Battery Capacity: Ranges from 400 Ah to 600 Ah (Lead-acid or Lithium-ion versions available).
Motor: Efficient AC drive motor (approx. 2.5 kW rating).

Key Features

BT Powertrak: A unique traction system that adjusts drive wheel pressure based on the weight of the load to prevent wheel spin and ensure stability.
Click-2-Creep: Allows the operator to maneuver the truck in tight spaces with the handle in an upright position.
Safety Guards: One-touch foldable side gates that provide protection for the operator during high-speed travel.
Smart Truck: Includes telematics hardware as standard, allowing for integration with Toyota’s I_Site system for fleet monitoring.
Regenerative Braking: Recovers energy during braking to extend battery life.
Would you like me to find the specific maintenance schedule or the manual for the LPE220?

Identification

Manufacturer : Toyota
Model : LPE200B
Drive : Electric
Operator type : Stand on
Load Capacity (kg) : 2000
Lift Height (mm) : 152
Usage Intensity : Medium-High
Transport Distance : Medium-Long
Suitable Areas : Warehouses
Operator Position: Standing
Travel Speed, no load (km/h) :14.4
Free Lift (mm) : N/A
Power Type : Lead acid
