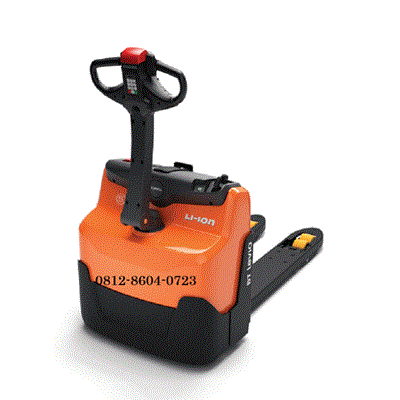

Toyota Pallet Mover LWE140 | 1.4 ton

Description

Toyota Pallet Mover LWE140 | 1.4 ton

BELIALAT.COM support unit, parts, service, rental, maintenance contract, overhaul, reconditioned Toyota Pallet Mover LWE140 | 1.4 ton

Main Specification, Toyota Pallet Mover LWE140 | 1.4 ton

The Toyota BT Levio LWE140 is a compact and efficient pedestrian-powered pallet truck (pallet mover) designed for low-to-medium intensity applications.
It is part of the W-series and is highly regarded for its maneuverability in tight spaces, such as inside delivery vehicles or narrow warehouse aisles.
Below are the primary technical specifications for the 1.4-ton model:

Core Performance & Capacity

Load Capacity 1,400 kg (1.4 Ton).
Load Center 600 mm.
Travel Speed 6.0 km/h (with or without load).
Drive Type Electric (AC Motor).
Operator Type Pedestrian (Walkie).

Dimensions & Weight

Service Weight: ~419 kg (including battery).
Overall Length (l1): 1,631 mm.
Length to Face of Forks (l2): 481 mm.
Overall Width (b1): 726 mm.
Fork Dimensions (s/e/l): 76 / 156 / 1,150 mm (standard).
Width Over Forks (b5): 550 mm (standard).
Turning Radius (Wa): 1,429 mm.
Aisle Width (Ast): ~2,113 mm (for 800×1200 pallets lengthways).

Electrical System

Battery Voltage: 24 V.
Nominal Capacity: 150 Ah (Lead-acid) / Optional Li-Ion variants.
Drive Motor Rating: 1.0 kW.
Lift Motor Rating: 1.0 kW.

Key Features

Click-2-Creep: Allows the operator to drive the truck with the tiller arm in a fully upright position at a reduced speed—perfect for navigating cramped truck beds.
BT Powerdrive: An integrated system that provides smooth, programmable performance and CAN-bus communication for higher reliability.
BT Castorlink: A 5-wheel chassis design that ensures maximum stability on uneven surfaces by linking the side castors.
Access Control: Equipped with PIN code entry to prevent unauthorized use and allow for specific operator performance profiles.
Note: Dimensions such as wheelbase and overall length can vary slightly depending on whether a “Small” or “Medium” battery compartment is selected.
Would you like me to find the maintenance schedule or a list of compatible battery chargers for this unit?

Identification

Manufacturer : Toyota
Model : LWE140
Drive : Electric
Load Capacity (kg) : 1400
Lift Height (mm) : 152
Usage Intensity : Medium-High
Transport Distance : Medium-Long
Suitable Areas : Warehouses
Operator type Stand on/pedestrian
Travel Speed, no load (km/h) :14.4
Free Lift (mm) : N/A
Power Type : Lead acid
