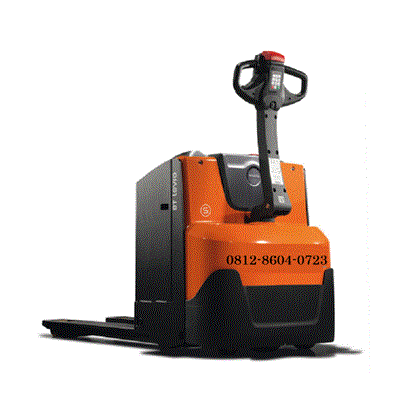

Toyota Pallet Mover LWE180 | 1.8 ton

Description

Toyota Pallet Mover LWE180 | 1.8 ton

BELIALAT.COM support unit, parts, service, rental, maintenance contract, overhaul, reconditioned Toyota Pallet Mover LWE180 | 1.8 ton

Main Specification, Toyota Pallet Mover LWE180 | 1.8 ton

The Toyota BT Levio LWE180 is a highly popular electric “walkie” pallet mover, designed for medium-intensity applications in warehouses, retail stores, and manufacturing.
Its standout feature is the BT Powerdrive system, which offers smooth, programmable performance.
Here are the detailed specifications for the LWE180:

Feature Specification

Load Capacity 1,800 kg (1.8 Ton).
Load Center 600 mm.
Travel Speed (With/Without Load) 6.0 km/h / 6.0 km/h.
Lift Height 205 mm.
Gradeability (With/Without Load) 9% / 18%.

Dimensions & Weight

Overall Length (l1): 1,688 mm (standard configuration).
Chassis Width (b1): 726 mm
Lenth to Face of Forks (l2): 538 mm.
Turning Radius (Wa): 1,456 mm.
Service Weight (incl. battery): Approx. 507 kg (can vary by battery type).
Aisle Width (1000×1200 pallet): ~1,899 mm (crossways).

Battery & Motor

Drive Motor Rating: 1.0 kW (AC Motor).
Lift Motor Rating: 1.0 kW.
Voltage: 24V.
Battery Capacity: Typically 225 Ah to 300 Ah (Lead-Acid) or Lithium-Ion options.
Access Control: PIN code entry as standard (supports up to 100 codes).

Key Features

Click-2-Creep: Allows the operator to drive the truck with the tiller arm in a vertical position—perfect for maneuvering in extremely tight spaces or inside delivery trucks.
Castorlink System: A 5-wheel chassis design that ensures stability on uneven surfaces by linking the side castors.
Smart Truck: Built-in telematics hardware that allows for easy connection to Toyota’s I_Site fleet management system.
Ergonomic Tiller: Symmetrical handle design with fingertip controls for both left- and right-handed users.
Would you like me to find a local dealer for parts or compare this model’s dimensions to the LWE200 (2.0 ton) version?

Identification

Manufacturer : Toyota
Model : LWE180
Drive : Electric
Load Capacity (kg) : 1800
Lift Height (mm) : 152
Usage Intensity : Medium-High
Transport Distance : Medium-Long
Suitable Areas : Warehouses
Operator type Stand on/pedestrian
Travel Speed, no load (km/h) :14.4
Free Lift (mm) : N/A
Power Type : Lead acid
