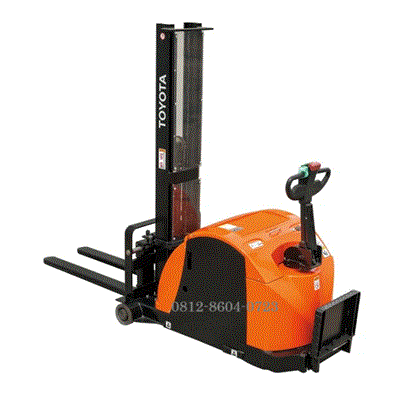

Toyota Power Stacker 3HFW6 | 0.6 ton

Description

Toyota Power Stacker 3HFW6 | 0.6 ton
BELIALAT.COM support unit, parts, service, rental, maintenance contract, overhaul, reconditioned Toyota Power Stacker 3HFW6 | 0.6 ton
Specification unit Toyota Power Stacker 3HFW6 | 0.6 ton

Specifications

Manufacturer Toyota
Model 3HFW6
Drive Electric
Operator type Stand-in
Load capacity/rated load Q kg 600
Support arm capacity Q kg 600
Load center c mm 600
Load distance (support arms raised/lowered) x mm 659/690
Wheelbase (support arms raised/lowered) y mm 1508/1539

Weight

Service weight with battery kg 1637
Axle load, with load, drive/castor/support arm wheel kg 571/521/2097
Axle load, without load, drive/castor/support arm wheel kg 621/397/563

Wheels

Drive/castor/fork wheel Polyurethane*
Wheel size, front mm ø250×92
Wheel size, rear mm ø85×74
Additional wheel size mm ø140×86
Wheels, number front/rear (X = driven wheels) 2(1X) / 4
Track width, front b10 mm 460
Track width, rear b11 mm 390

Dimensions

Height, mast lowered h1 mm 2371*
Free lift h2 mm 1894*
Lift h3 mm 5310*
Lift height h23 mm 5400*
Height, mast extended h4 mm 5916*
Initial Lift h5 mm 120
Height of overhead guard (cabin) h6 mm 2350
Stand height h7 mm 262
Height, fork lowered h13 mm 90
Overall length l
1 mm 2180
Length to face of forks l
2 mm 1030
Overall width b1 mm 790
Fork dimensions s/e/l mm 70/180/1150
Width over forks b5 mm 570
Ground clearance, center of wheelbase m1 mm 19,5
Aisle width for pallets 1000×1200 crossways Ast mm 2615
Aisle width for pallets 800×1200 crossways Ast mm 2588
Turning radius Wa mm 1740

Performance data

Travel speed, with/without load km/h 8/10
Lift speed, with/without load m/s 0,17 / 0,36
Lowering speed, with/without load m/s 0,45 / 0,47
Max. gradeability, with/without load 1) % 8/12
Acceleration time (over 10 m) s 5,5
Service brake Electromagnetic

Electric motor

Drive motor rating S2 60 min kW 2,8
Lift motor rating (S3 15%) / for 200DN (S3 8.5 at 150 bar) kW 3
Battery voltage/nominal capacity K5 V/Ah 24/210, 300, 420
Battery weight kg 29, 44, 58
Energy consumption according to EN16796 kWh/h 0,77

Others

Type of drive control Variable AC
Sound level at the driver’s ear according to EN12053 dB (A) 67

The Toyota 3HFW6 is a compact, electric-powered counterbalanced stacker designed for light-duty indoor operations.
Unlike standard straddle stackers, its counterbalanced design allows it to handle various pallet types (both open and closed) without the need for support arms to straddle the load.
Below are the technical specifications for the 0.6-ton (600 kg) model:

Performance Specifications

Feature Specification;
Load Capacity 600 kg (at 400 mm load center).
Load Center 400 mm.
Travel Speed 4.6 km/h (Full Load / No Load).
Lifting Speed 105 mm/sec (Full Load) | 195 mm/sec (No Load).
Gradeability 3% (Full Load) | 8% (No Load).
Turning Radius 1,095 mm.
Aisle Width 1,635 mm (with 1,100 x 1,100 mm pallet).

Dimensions & Weight

Overall Length: 2,035 mm.
Overall Width: 875 mm.
Mast Lowered Height: 1,925 mm (Standard Single Mast).
Mast Extended Height: 1,970 mm (Standard Single Mast).
Fork Dimensions: 850 mm (Length) x 115 mm (Width).
Max Width Over Forks: 645 mm.
Total Weight: Approx. 780 kg (excluding battery).

Power & Drive System

Drive Motor: AC 0.85 kW.
Lift Motor: 1.5 kW.
Battery Voltage/Capacity: 24V / 65Ah (Standard EB type).
Controller Type: Transistor Chopper.
Tires: Polyurethane (Drive: 230 x 70 mm | Load: 150 x 65 mm).

Key Features

Compact Chassis: Specifically designed for narrow aisles and low-ceiling environments (e.g., elevators or upper-floor storage).
Counterbalanced Design: No base legs (support arms) extending forward, allowing it to pick up closed-bottom pallets and work closely against racks.
Safety Options: Often equipped with a Turn Speed Limiter (reduces speed when steering exceeds 50°) and a Travel Creep Speed function for precise maneuvering.
Operator Comfort: Features an ergonomic resin steering handle and an optional flip-up platform for longer travel distances.
Note: Specifications for the Double Mast version differ slightly, with a reduced load capacity of 500 kg at higher lift heights (up to 3,000 mm).
