Toyota Pallet Stacker 6210-S25 | 1.1 ton
Toyota Pallet Stacker 6210-S25 | 1.1 ton
Key Technical Specifications
Feature Specification;
Model 6210-S25.
Load Capacity 1,134 kg (approx. 2,500 lbs).
Max Lift Height 3,632 mm (approx. 143 inches).
Travel Speed (No Load) 5.8 km/h.
Travel Speed (Full Load) 5.4 km/h.
Power System 24V (Lead-acid or Lithium-ion versions).
Aisle Width (Minimum) ~2,550 mm (depending on pallet size).
Free Lift 1,778 mm (standard on specific mast configurations).
Description
Toyota Pallet Stacker 6210-S25 | 1.1 ton
BELIALAT.COM support unit, parts, service, rental, maintenance contract, overhaul, reconditioned Toyota Pallet Stacker 6210-S25 | 1.1 ton
Toyota Pallet Stacker 6210-S25 | 1.1 ton
BELIALAT.COM support unit, parts, service, rental, maintenance contract, overhaul, reconditioned Toyota Pallet Stacker 6210-S25 | 1.1 ton.

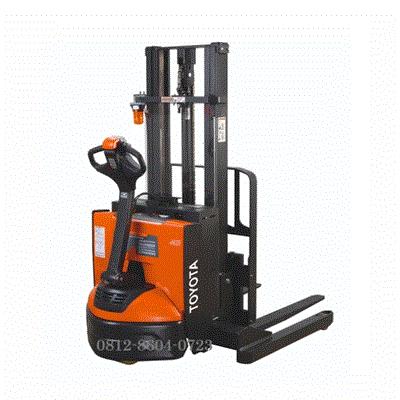

The Toyota 6210-S25 (part of the 6-Series Walkie Stacker line) is a versatile, electric pedestrian pallet stacker designed for light-to-medium duty applications. It excels in tight spaces where a full-sized forklift would be too bulky.
Below are the primary specifications for the 1.1-ton (2,200 lbs) capacity model.
Core Performance & Capacity
Model Number 6210-S25.
Load Capacity 1,100 kg (2,425 lbs).
Power Source 24V Battery.
Drive Control Transistor (MOSFET).
Travel Speed (Loaded) Approx. 4.5 – 5.0 km/h.
Dimensions & Maneuverability
The “S25” designation typically refers to the narrow-chassis design, making it ideal for narrow aisles.
Turning Radius: Highly compact, allowing for 180° turns in confined storage areas.
Fork Length: Standard lengths usually range around 1,070 mm to 1,150 mm, though options vary.
Overall Width: Designed to be slightly wider than a standard pallet for stability but narrow enough for mezzanine work.
Mast & Lifting
The 6210-S25 usually comes with a variety of mast configurations:
Max Lift Height: Depending on the mast (Simplex or Duplex), it generally reaches between 2,500 mm and 3,700 mm.
Free Lift: Some configurations allow the forks to rise without increasing the overall lowered height of the mast.
Hydraulics: Smooth proportional lifting and lowering for fragile loads.
Key Features
Ergonomic Handle: Features a “click-to-creep” function, allowing the truck to operate with the handle in a near-vertical position—perfect for elevators or back-of-store areas.
Safety: Includes an emergency “belly button” reverse switch on the handle head and an automatic brake when the handle is released.
Durability: Heavy-duty construction with a reinforced bumper to protect internal components from impacts.
Note: Actual lift capacity decreases as the load center moves forward or the mast extends to its maximum height. Always check the load capacity plate on the specific unit before operation.
