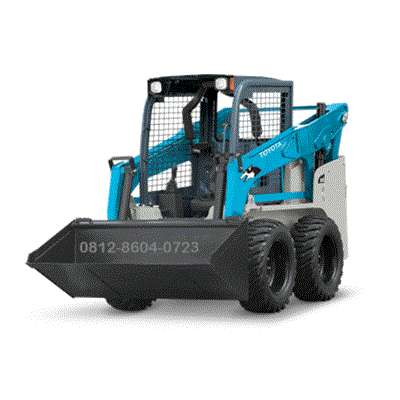

Toyota Skid Loader 5SDK8 | 2.5 ton

Description

Toyota Skid Loader 5SDK8 | 2.5 ton

BELIALAT.COM support unit, parts, service, rental, maintenance contract, overhaul, reconditioned Toyota Skid Loader 5SDK8 | 2.5 ton

Specification unit Toyota Skid Loader 5SDK8 | 2.5 ton

PERFORMANCE

Model : 5SDK8
Engine Model : TOYOTA 1DZ-II.

Operating Load (SAE) kg : 650
Std Bucket Capacity G.P. m3 :0.32.

Overall Width w/Bucket – typical only, brand dependant A mm : 1585
Clearance Circle w/Bucket B mm : 1890.

Overall Height C mm : 1945
Overall Length w/Bucket D mm : 3095

TOYOTA SKID STEER LOADER

Toyota telah lama terkenal sebagai yang terbaik yang tersedia. Kekuatan, kinerja tinggi, dan keandalan telah menjadi identik dengan jajaran produk ini, rangkaian Toyota 5SDK menghadirkan stabilitas, kenyamanan, dan keamanan pengemudi yang luar biasa.

Kontrol sentuh yang lembut memastikan transisi tuas yang lancar, memungkinkan manuver yang presisi.

Rangkaian 5SDK juga menyediakan produk bagi para pemilik yang menawarkan konstruksi tugas berat, biaya operasional rendah, dan masa pakai mesin yang lebih lama, yang menambah nilai tambah bagi bisnis pelanggan kami.

OPTIONAL FEATURES

• Kabin bertekanan
• AC merupakan opsi standar di semua mesin seri 5SDK8
• Hidraulik aliran tinggi

• Sistem kontrol pengendaraan (perangkat penyerap getaran lengan),
saat akumulator hidrolik diaktifkan dan getaran diserap,

fitur ini berkontribusi pada stabilitas dinamis
saat berkendara di jalan kasar dengan beban

CONTROL PENGOPERASIAN

Opsi kontrol pengoperasian meliputi:
• Kontrol tangan dan kaki
• Pola H yang dioperasikan pilot dengan sakelar bantu proporsional
pada pegangan tangan
• Kontrol pilot ISO dengan sakelar bantu proporsional
pada kontrol tangan

STANDARD FEATURES

• Semua model menggunakan motor HST berkapasitas besar dan tahan tekanan tinggi
• Kapasitas fluida hidrolik telah ditingkatkan menjaga suhu fluida pada tingkat optimal.

• Penempatan ulang pendingin oli meningkatkan kinerja pendinginan
• Cincin pengurang tekanan untuk setiap silinder angkat dan buang meny erap benturan saat menggali. Hal ini melindungi seal gasket dan meningkatkan keandalan terhadap kebocoran oli.

• Suspensi kursi dengan kursi berukuran besar dan sakelar kursi untuk mengunci operasi penanganan beban yang terpasang di alasnya

The Toyota Skid Steer Loader 5SDK8 is a versatile and robust skid steer loader, widely recognized for its reliability in construction, landscaping, and industrial applications.
Below are the detailed technical specifications for the 5SDK8 model, specifically the variant with a 650 kg operating load.

Core Performance

Operating Load (SAE): 650 kg.
Tipping Load (SAE): 1,300 kg.
Travel Speed: 12.0 km/h (both forward and reverse).
Operating Weight: 2,510 kg (with full fuel tank and standard bucket).
Gradability: 30% (forward) / 57% (reverse).

Engine Specifications

The 5SDK8 is typically powered by a Toyota-designed industrial diesel engine.
Engine Model: Toyota 1DZ-II.
Type: 4-cylinder, water-cooled diesel.
Piston Displacement: 2,486 cc.
Rated Power: 39 kW (approx.8 52 HP) @ 2,400 rpm.
Rated Torque: 160 Nm @ 1,600 rpm.
Fuel Tank Capacity: 85 Liters.

Dimensions & Reach

Feature Measurement;
Overall Length (with bucket) 3,095 mm.
Overall Width (with bucket) 1,530 mm.
Overall Height 1,945 mm.
Dump Height (40° angle) 2,190 mm.
Reach Fully Raised (40° angle) 510 mm.
Ground Clearance (center) 275 mm.
Clearance Circle (with bucket) 1,890 mm.

Hydraulic System

Pump Capacity: 62 L/min @ 2,400 rpm.
Control Type: Hydrostatic Transmission (HST) with infinitely variable speed.
Standard Features: Self-leveling system on lift (often standard) and shock-reducing bucket features.

Key Features

Operator Comfort: Features a spacious cabin with an overhead instrument panel and low-vibration control levers.
Safety: Includes ROPS/FOPS (Roll-Over/Falling Object Protective Structure) as standard, along with a multiple safety interlock system.
Serviceability: Designed with easy access to the hydraulic oil fill, battery, and filters for daily maintenance.
