Toyota Towing Tractor 3TE25 | 2.5 ton

Description

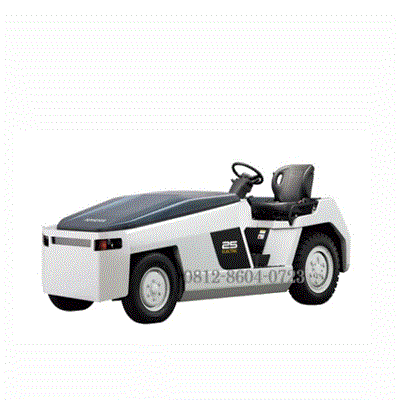

Toyota Towing Tractor 3TE25 | 2.5 ton

BELIALAT.COM support unit, parts, service, rental, maintenance contract, overhaul, reconditioned Toyota Towing Tractor 3TE25 | 2.5 ton

The Toyota 3TE25 is a high-capacity electric towing tractor designed for heavy-duty applications such as airport logistics and large-scale industrial material handling.
It is part of the 3TE series, known for its 80-volt AC technology which provides performance levels comparable to engine-powered models.
Below are the key technical specifications for the 3TE25 unit:

Performance and Capacity

Maximum Drawbar Pull: 25,100 N (2,560 kgf).
Towing Capacity (Towed Weight): 27,000 kg (approx. 59,500 lbs).
Travel Speed (No Load): 25 km/h.
Travel Speed (with 13.5-ton Load): 17.8 km/h.
Gradeability: 33% (unloaded).
Turning Radius (Outside): 3,200 mm.

Electrical System

Power Type: Battery (Electric).
Drive Motors: Two 11.2 kW AC motors (Total 22.4 kW).
System Voltage: 80V.
Standard Battery Capacity: 80V / 620Ah (5-hour rating).
Controller Type: Transistor Inverter (AC Drive System).

Dimensions and Weight

Overall Length (with hitch): 3,495 mm.
>Overall Width: 1,445 mm.
>Overall Height (without cabin): 1,390 mm.
>Overall Height (with optional cabin): 1,940 mm.
Wheelbase: 2,240 mm.
Ground Clearance: 150 mm (center of wheelbase).
Total Service Weight (with battery): 4,770 kg.
Battery Weight: Approx. 1,560 kg.

Chassis and Equipment

Operator Position: Seated Rider.
Tires: * Front: 175R13-8PR (Pneumatic).
Rear: 28×8-15-12PR (Pneumatic).
Brakes: Hydraulic front disc and rear drum brakes; mechanical hand parking brake.
Standard Features: * Operator Presence Sensing System (OPSS).
Multifunction LCD display (speedometer, battery indicator, etc.).
Slope Sensing Auto-Power Mode.
LED headlights and rear combination lights.
Anti-rollback function and regenerative braking

Main Specification, Toyota Towing Tractor 3TE25 | 2.5 ton

Toyota Towing Tractor 3TE25 | 2.5 ton

Model : 3TE25.
Operator Position : Sit-down.
Maximum Drawbar Pull (3-Minute Ratings) : 17640 (1800) N (kg).
Towed Weight 60-Minute Ratings : 25000 kg.
Overall Width A : 1420 mm.
Turning Radius (Outside) : 1600 mm.
Overall Height : 1185 mm.
Height (with cabin) B : 1325 (1895) mm.
Length (with hitch) C : 3615 mm.
Turning Radius (Outside) D : 3295 mm.
Battery Voltage/Capacity (5-hour ratings) : 80/445 V/AH.
Electric Motor : 16.6 kw.
