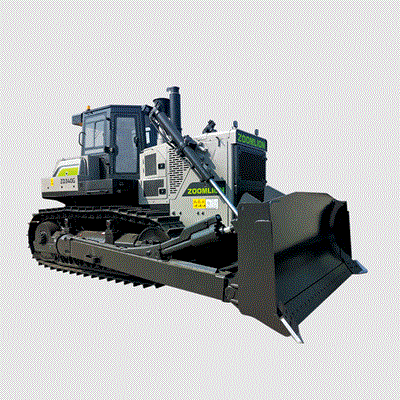

Zoomlion Bulldozer ZD340G | 35.2 ton

Description

Zoomlion Bulldozer ZD340G | 35.2 ton

BELIALAT.COM support unit, parts, service, rental, maintenance contract, overhaul, reconditioned Zoomlion Bulldozer ZD340G | 35.2 ton

Zoomlion Bulldozer ZD340G | 35.2 ton, Specifications unit

Engine

Operating weight 35260kg
Rated power 257kw/2000rpm
Blade capacity 10.5m³
Width 4130mm
Height 3692mm
Blade Type Straight Tilt Blade

Transmission

Type : Heat exchange
Core size : 0.54 m2

Electrical System

Alternator : 65 amps
Battery : 2X12 V in series, maintenance free, 750 A CCA at -18°

Powertrain

Dual path hydrostatic
Pump : Variable axial piston
Motor : Variable bent axis piston

Max. drawbar pull : 214 kN
Transmission : Single lever control electronic tracking
Oil filter : 4 micron, spin-on, replaceable

Travel speeds
Forward : 0-9.7 km/h
Reverse : 0-9.7 km/h

SAHR parking brake
(Spring applied hydraulically released)
Steering brakes : Hydrostatic

Oil Final drive : 2 helical gear reductions to
planetary reduction
Reduction ratio : 61.4:1

Hydraulic Group

Pump Flow@2200 RPM : 132 L/min
Max Pressure : 207 bar
Lift cylinder PAT : nr.2

Bore diameter : 108 mm
Rod diameter : 50.8 mm
Stroke : 445 mm

Angle cylinder PAT : nr.2
Bore diameter : 127 mm
Rod diameter : 63.5 mm

Stroke : 381 mm
Tilt cylinder PAT : nr.1
Bore diameter : 127 mm
Rod diameter : 63.5 mm
Stroke : 120 mm

Blade

Variable blade pitch – adjustable : 55° to 60°
Lift speed – per second : 483 mm
Cutting edge : Reversible, replaceble

Width : 200 mm
Length : 2158 mm
Thickness : 19.1 mm;

Track On Ground

Shoe width : 508 mm
Tracks on ground : 26323 cm2

Undercarriage

Track adjustment : Grease injection
Hydraulic frame : Two-tier chassis,
manufactured in structural steel

Track link pitch : 175.4 mm
Track shoe height : 51 mm
Pin diameter : 36.6 mm

Bushing diameter : 62 mm
Track shoes per side : 43
Track rollers per side : 7

Carrier rollers per side : 2
Track roller rail diameter : 190 mm

Ripper

Max. penetration : 478 mm
Width : 1712 mm
Cut width : 1636 mm

Max. ground clearance : 424 mm
Max. number of shanks : 3
Tooth spacing w/3 teeth : 785 mm

Hydraulic cylinder : Double-acting
Diameter : 102 mm
Stroke : 254 mm
Rod : 51 mm

Service Capacity

Fuel tank : 300 L
Engine oil w/filter : 16.4 L
Engine oil w/o filter : 15.6 L

Engine cooling system : 25.5 L
Hydraulic reservoir : 98.4 L
Final drive – per side : 14.2 L

Track rollers – each : 0.330 L
Front idlers – each : 0.460 L
Carrier rollers – each : 0.275 L
