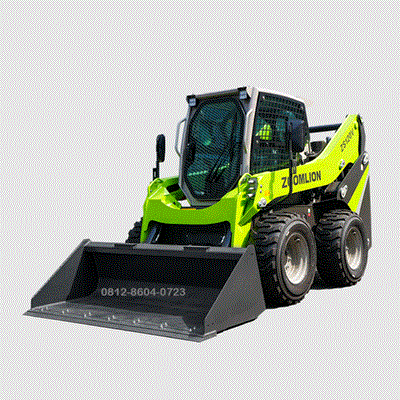

Zoomlion Skid Loader ZS120V | 3.9 ton

Description

Zoomlion Skid Loader ZS120V | 3.9 ton

BELIALAT.COM support unit, parts, service, rental, maintenance contract, overhaul, reconditioned Zoomlion Skid Loader ZS120V | 3.9 ton

Specification Unit Zoomlion Skid Loader ZS120V | 3.9 ton

Dimensions

Overall length (with bucket) : 2460 mm ( 96.85 in )
Overall width (with bucket) : 910 mm ( 35.83 in ).

Overall height (to cab top) : 1810 mm ( 71.26 in )
Height of bucket hinge pin : 2420 mm ( 95.28 in ).

Tail length : 695 mm ( 27.36 in )
Ground clearance : 140 mm ( 5.51 in ).

Angle of departure : 25°
Front turning radius (without bucket) : 945 mm ( 37.20 in ).

Front turning radius (with bucket) : 1460 mm ( 57.48 in )
Rear turning radius : 1115 mm ( 43.90 in ).

Wheel base : 740 mm ( 29.13 in )
Wheel track : 762 mm ( 30 in  )

Working range

Maximum operating height : 3070 mm ( 120.87 in )
Maximum dumping height : 1950 mm ( 76.77 in  )
Dumping angle at maximum height : 34°
Bucket rollback at maximum height : 97°
Bucket rollback at ground level : 23°
Dumping reach : 403 mm ( 15.87 in )

Engine

Model : Kubota D1105
Rated power : 18.2 kW (24.41 hp) / 3000 rpm
Displacement : 1.123 L ( 68.53 in³ )
Emission standards : EPA T4F / EU Stage V

Performance

Rated operating capacity : 345 kg  ( 760.60 in )
Tipping load : 690 kg ( 1521.19 in )
Maximum travel speed : 10.3 km/h  ( 6.4 mph )
Maximum drawbar pull : 10.1 kN ( 2270.57 lbf )
Lift arm breakout force : 7.6 kN ( 1708.55 lbf )
Bucket breakout force : 8.7 kN ( 1955.84 lbf )
Gradeability : 25°

Hydraulic System

Maximum flow : 38 L/min ( 10.04 gal/min )
Pressure – Working equipment circuit : 19 MPa ( 2755.72 psi )
Pressure – Travel circuit : 25 MPa ( 3625.94 psi )
Pressure – Pilot circuit : 2.4 MPa ( 348.09 psi )

Service Refill Capacities

Fuel tank : 25 L  ( 6.60 gal )
Coolant : 5.5 L ( 1.45 gal )
Engine oil : 5.1 L ( 1.35 gal )
Hydraulic tank : 15 L  ( 3.96 gal )
Hydraulic system : 36 L ( 9.51 gal  )
