Bobcat Skid Loader S70 | 344 kg

Description

Bobcat Skid Loader S70 | 344 kg

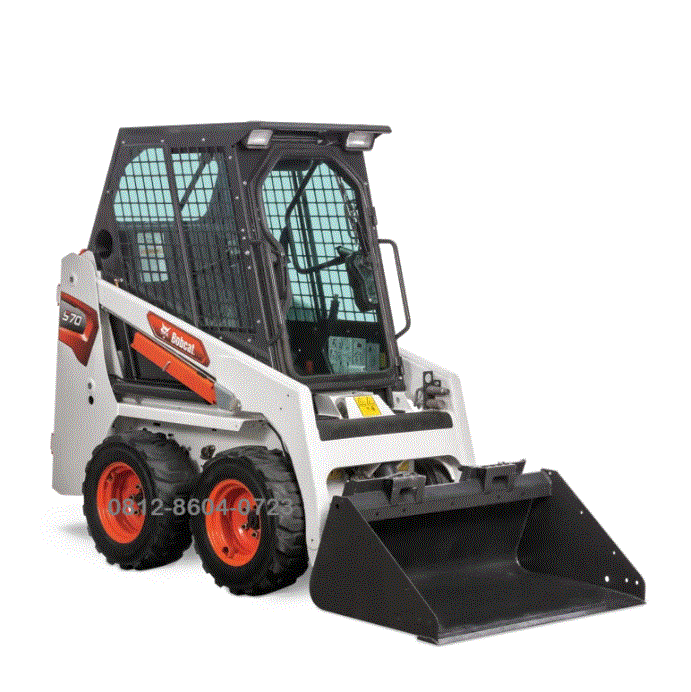

The Bobcat S70 is the most compact skid-steer loader in the Bobcat lineup, specifically designed for work in tight spaces like narrow hallways, backyards, and demolition sites.
The 344 kg figure you mentioned refers to its Rated Operating Capacity (ROC), which is its safe working load.2 Here are the detailed technical specifications:

Performance & Capacities

The S70 is built for agility and efficiency in confined areas, balancing a small footprint with reliable diesel power.
Rated Operating Capacity (ISO 14397-1): 344 kg (760 lbs).
Tipping Load: 686 kg (1,512 lbs).
Operating Weight: 1,268 kg (2,795 lbs).
Travel Speed: 9.8 km/h (6.1 mph).
Pump Capacity (Auxiliary Hydraulics): 37.1 L/min (9.8 gpm).
System Relief at Quick Couplers: 207 bar (3,000 psi).

Engine Specifications

Make/Model: Kubota D1005-E4B-BC-3 (Tier 4).
Fuel/Cooling: Diesel / Liquid.
Power (at 2400 RPM): 17.5 kW (23.5 hp).
Torque (at 1425 RPM): 62.8 Nm.
Number of Cylinders: 3.
Displacement: 1.0 L (1001 cm³).
Fuel Tank Capacity: 24.6 L.

Dimensions

The S70 is roughly 3 feet wide and 6 feet tall, allowing it to pass through standard doorways and gates.

Dimension Measurement (Metric) Measurement (Imperial)
Length (with standard bucket) 2,472 mm /97.3 in.
Width (over tires) 901 mm /35.5 in.
Height (top of cab) 1,814 mm /71.4 in.
Height to Bucket Hinge Pin 2,399 mm /94.5 in.
Dump Height (max) 1,934 mm /76.1 in.
Wheelbase 722 mm 28.4 in.
Ground Clearance 141 mm /5.6 in.

Key Features

Bob-Tach™ System: Allows for quick and easy attachment changes (e.g., buckets, sweepers, augers, breakers).
Controls: Direction and speed are controlled by two hand levers; lift and tilt are controlled by separate foot pedals.
Operator Cab: Includes ROPS/FOPS (Roll-Over/Falling Object Protective Structure) for safety.
Serviceability: Features a swing-out tailgate and tilt-up cab for easy access to the engine and hydraulic components.
