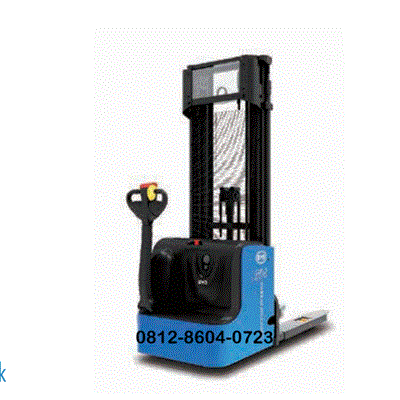

BYD Pallet Mover S14JW | 1.4 ton

Description

BYD Pallet Mover S14JW | 1.4 ton

The BYD S14JW is a versatile electric pedestrian (walkie) pallet stacker designed for efficient material handling in narrow aisles and high-activity warehouse environments.
Powered by BYD’s signature Lithium Iron Phosphate (LiFePO4) technology, it offers significant advantages in charging speed and battery lifespan compared to traditional lead-acid models.

Technical Specifications

Feature Specification;
Model S14JW.
Load Capacity 1,400 kg (1.4 Ton).
Load Center 600 mm.
Service Weight ~1,200 kg (including battery)
Voltage 24 V.
Battery Capacity 24V / 110Ah or 130Ah (LiFePO4).
Charger 30A (Standard) / 100A (Optional Quick Charge).
Charging Time ~3.5 to 4 hours (Standard) / ~1 hour (Quick Charge).
Min. Turning Radius 1,564 mm.
Travel Speed Up to 6 km/h (Adjustable).

Key Features & Performance

Battery Technology: The LiFePO4 battery is maintenance-free (no water topping) and supports opportunity charging, allowing operators to plug it in during short breaks without damaging the battery life.
Durability: Built with a ZF drive axle and a three-phase AC asynchronous motor for reliable, high-torque performance.

Safety Systems:

Hill Hold Control: Prevents the unit from rolling back on ramps.
Cornering Speed Control: Automatically reduces speed when turning to prevent tipping.
Emergency Braking: Includes an emergency stop switch and power-off protection.
Operational Comfort: Features a multi-function operating handle and an intuitive dashboard for monitoring battery levels and performance.
Environmentally Friendly: Zero emissions and no toxic fumes, making it ideal for indoor use in food, beverage, and pharmaceutical industries.

Optional Configurations

Electronic Power Steering (EPS): For easier maneuvering in tight spaces.
Quick Charger: 100A charger to reduce downtime to approximately 1 hour.
Customization: Available with customized fork sizes or anti-skid thickened tires.
