Caterpillar Pallet Mover NPF20N3DR | 2 ton

Description

Caterpillar Pallet Mover NPF20N3DR | 2 ton

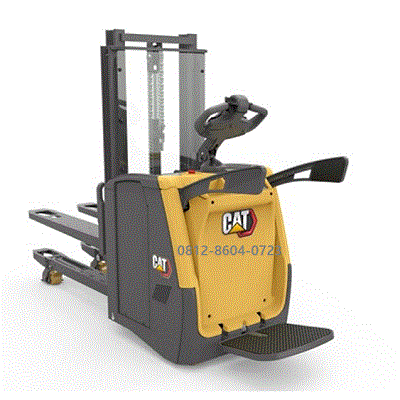

The Caterpillar (Cat) NPF20N3DR is a heavy-duty electric platform pallet mover designed specifically as a double pallet handler.
Unlike standard pallet trucks, it features a mast that allows it to carry two pallets simultaneously—one on the forks and one on the straddle legs—effectively doubling productivity for intensive loading and unloading tasks.
The “R” in the model name signifies a Rear-Entry fixed platform, which provides high operator protection and ergonomics for long-distance transport.

Technical Specifications

Specification Details.
Model NPF20N3DR.
Nominal Capacity 2,000 kg (2.0 Ton).
Load Center 600 mm.
Operation Type Electric Stand-on (Fixed Platform, Rear Entry).
Voltage 24V.
Travel Speed 10 km/h (with load) / 12.5 km/h (without load).
Lifting Height Up to 1,700 mm – 2,000 mm (mast dependent).
Initial Lift 210 mm (for ramp clearance and double handling).
Battery Capacity 222 Ah – 400 Ah (Lead-Acid or Li-ion options).
Chassis Width ~720 mm (compact design for narrow aisles).
Standard Fork Length 1,170 mm.

Key Features & Performance

Double Pallet Handling: It can transport two pallets at once without increasing the truck’s overall length, making it ideal for cross-docking and lorry loading.
ProRide+ System: A patented drive unit design that maximizes traction, damping, and stability even on wet or uneven surfaces.
emPower Tiller Head: An ergonomic control handle with easy-to-reach buttons and weather-protected construction (IP65 rated).
Safety Barriers: As a fixed-platform model, it features solid side and rear barriers to protect the operator during high-speed travel.
Electronic Steering: Provides speed-sensitive steering (the truck automatically slows down during sharp turns to prevent tipping).
Recommended Applications
Lorry Loading/Unloading: Specifically for double-stacked goods.
Cross-Docking: Moving high volumes of goods across the warehouse floor quickly.
Long-Distance Transport: The fixed platform and high travel speed are designed for large distribution centers where operators must travel long distances.
