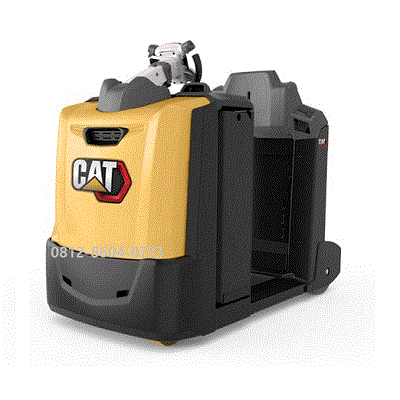

Caterpillar Towing Tractor NTR50N2 | 5 ton

Description

Caterpillar Towing Tractor NTR50N2 | 5 ton

The Caterpillar NTR50N2 is a heavy-duty, electric stand-on towing tractor designed for indoor warehouse and industrial applications, particularly in sectors like automotive and logistics.
Below are the technical specifications for the 5-ton model:

Core Performance & Capacity

Feature Specification.
Towing Capacity 5,000 kg (5.0 Tonnes).
Power Source 24V Electric Battery.
Travel Speed (Loaded) ~7 km/h.
Travel Speed (Unloaded) ~13 km/h.
Turning Radius 1.31 m.
Wheelbase 1.12 m.

Dimensions & Weight

Total Length: 1,450 mm.
Total Width: 800 mm.
Truck Weight: Approx. 1,106 kg (including maximum battery weight).
Wheel Configuration: 3-wheel (Polyurethane traction and load wheels).

Key Features

Responsive Drive System (RDS): Features adaptive steering and intelligent curve control that adjusts speed and steering sensitivity based on the turn angle.
Flying Start Function: Allows the operator to begin acceleration while walking beside the unit, just before stepping onto the floor mat, increasing cycle efficiency.
Operator Comfort: Equipped with a Triple Suspension Floor to dampen vibrations and shocks, along with an adjustable ergonomic steering wheel.
Battery Options: Compatible with standard Lead-Acid batteries or high-efficiency Li-ion batteries for 24/7 multi-shift operations.
Operating Modes: Switchable ECO and PRO driving modes to balance energy consumption with high performance.

Safety & Maintenance

Automatic Parking Brake: Activates when the truck stops or the operator exits.
Hill Hold: Prevents rolling back when starting on an incline.
IP Protection: Critical components are sealed (IP65/IP67) to protect against dust and water ingress.
Serviceability: Easily removable front cover provides quick access to all major components for maintenance.
