Caterpillar Wheel Loader 992 | 105.8 ton

Description

Caterpillar Wheel Loader 992 | 105.8 ton

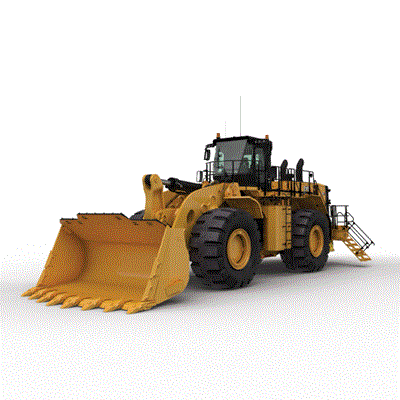

The Caterpillar 992 is a heavy-duty large wheel loader designed primarily for high-production mining and quarry applications.
The current model (replacing the 992K) is built to provide maximum efficiency and a perfect “pass-match” for the Cat 775, 777, and 785 off-highway trucks.
Here are the key technical specifications for the Caterpillar 992:

Core Specifications

Feature Metric Specification Imperial Specification.
Operating Weight 105,882 kg 233,430 lb.
Engine Model Cat® C32B Cat® C32B.
Net Power 607 kW 814 hp.
Bucket Capacities 11.5 – 24.5 m³ 15 – 32 yd³.
Rated Payload (Standard) 23.1 tonnes 25.5 tons.
Rated Payload (High Lift) 20.4 tonnes 22.5 tons.

Engine & Performance

The 992 is powered by the Cat C32B engine, which meets U.S. EPA Tier 4 Final or Tier 2 equivalent emission standards depending on the region.
Rated Speed: 1,750 rpm.
Displacement: 32.1 L (1,963.5 in³).
Peak Torque: 4,765 N·m (at 1,200 rpm).
Transmission: Cat Planetary Powershift (3 Forward / 3 Reverse).
Max Travel Speed (Forward): 20.5 km/h (12.7 mph).

Hydraulic System

The unit utilizes a Positive Flow Control (PFC) hydraulic system to improve efficiency and bucket feel.
Total Hydraulic Cycle Time: 17.1 seconds.
Raise Time: 9.0 seconds.
Dump Time: 2.6 seconds.
Lower (Float Down): 3.2 seconds.
Steering Angle: 80° (total).

Dimensions (Standard Lift)

Wheel Base: 5,890 mm (19.3 ft).
Maximum Overall Length: 15,489 mm (50.8 ft).
Height to Top of ROPS: 5,571 mm (18.3 ft).
Ground Clearance: 666 mm (2.2 ft).
Clearance at Max Lift: 4,630 mm (15.2 ft).

Key Features

Productivity: Up to 32% more productive than the previous 992K model.
Fuel Efficiency: Enhanced by an on-demand throttle and improved rimpull control.
Operator Comfort: Features the Next Gen Cab with increased visibility, automated climate control, and electro-hydraulic force-feedback steering.
Technology: Integrated with Cat MineStar for real-time fleet management and payload monitoring.
