Hangcha Forklift A15 | 1.5 ton

Description

Hangcha Forklift A15 | 1.5 ton

The Hangcha A Series 1.5-ton forklift is available in two primary configurations: Electric (CPD15) and Diesel (CPCD15).
Below are the technical specifications for both the Electric and Diesel variants of the 1.5-ton model.

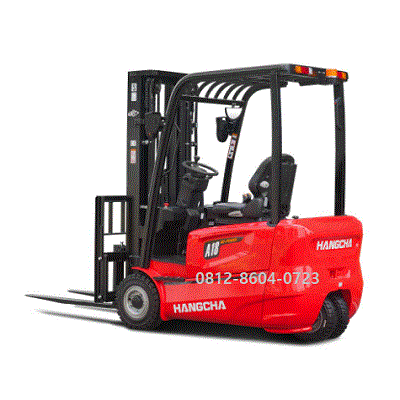

Electric Forklift (CPD15-AC3)2

This model is designed for indoor use, offering zero emissions and a tight turning radius.

Feature Specification

Rated Capacity 1,500 kg.
Load Center 500 mm.
Power Type Electric (AC Drive Motor)
Battery Voltage/Capacity 48V / 400–420Ah.
Standard Lift Height 3,000 mm (Duplex Mast).
Turning Radius 1,900 mm.
Travel Speed (Full/No Load) 14 / 15 km/h.
Total Weight (with battery) Approx. 2,940 kg
Overall Width 1,080 mm.

Diesel Forklift (CPCD15)

The diesel version is built for durability and outdoor use, often powered by a Xinchai or Yanmar engine.

Feature Specification

Rated Capacity 1,500 kg.
Load Center 500 mm.
Engine Model Xinchai NC485BPG / Yanmar 4TNE92.
Rated Power 30 kW @ 2,600 rpm.
Standard Lift Height 3,000 mm.
Turning Radius 1,950 mm.
Travel Speed (Full/No Load) 14 / 15 km/h.
Total Weight Approx. 2,600 kg.
Tyre Type Pneumatic (Solid optional).

Key Features of the A Series

Ergonomics: Large footwell and adjustable steering wheel to reduce operator fatigue.
Stability: Low center of gravity design, especially in the electric model where the battery is positioned low in the chassis.

Safety: Includes a “Soft Landing” system that automatically slows the forks as they approach the ground to prevent impact.
Maintenance: Easy-access engine cover (Diesel) or side-loading battery options (Electric) for quick servicing.
